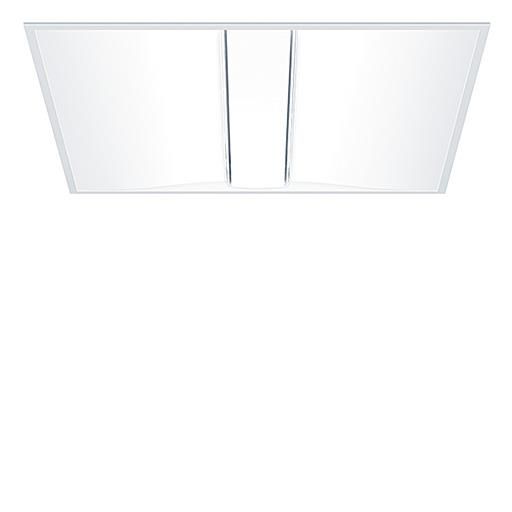

LED recessed ceiling luminaire with digitally dimmable, DC voltage-compliant LED converter for DALI control with two DALI addresses for separate control of central and side area; total power: 31.4 W. LED service life lasts 50000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 3540 lm, Luminaire efficacy: 113 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. Despite maximum quality control, recognisable colour differences between luminaires with the predefined binning may occur with cluster applications. To achieve a uniform appearance, we recommend consulting a lighting consultant with intended cluster or continuous row installations. Diffuse side areas for pleasant ambient lighting and high quality lenticular structure for central area for glare-free lighting with UGR < 19 and L65 < 3000 cd/m² and homogeneous appearance, internal 5-pole plug-in terminal block (can be connected from inside or outside); can be installed as a single luminaire or in a cluster; designed to fit in ceiling apertures cut with a saw and in modular ceilings with concealed or visible joist system; fixing set and strain relief must be ordered separately; Luminaire wired with halogen-free leads; Dimensions: 623 x 623 x 77 mm, weight: 5.8 kg
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 31.4 W | 3540 lm | 113 lm/W | 3000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 623 mm
Width: 623 mm
Height: 77 mm
Weight: 5.8 kg
Design
Colour of housing: White
Electric
System power: 31.4 W
Voltage: 220-240 V AC
Controller: DALI
Appliance Class: I
Protection
IP: 20
Designation labels: CE, ENEC

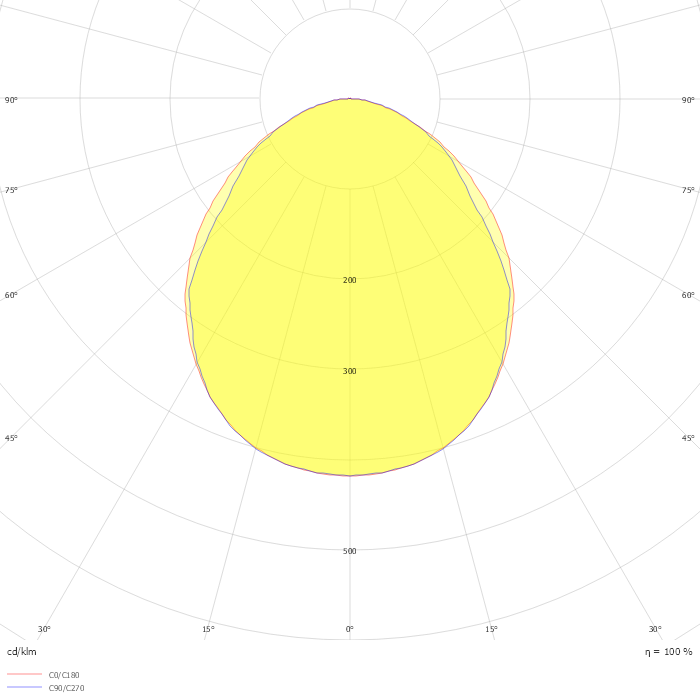

Photometric data
ZIP file
