Your products (0)

Product data sheet

NLED4034 36W 296×1196 5000K 学校灯盘

70115997

NVC

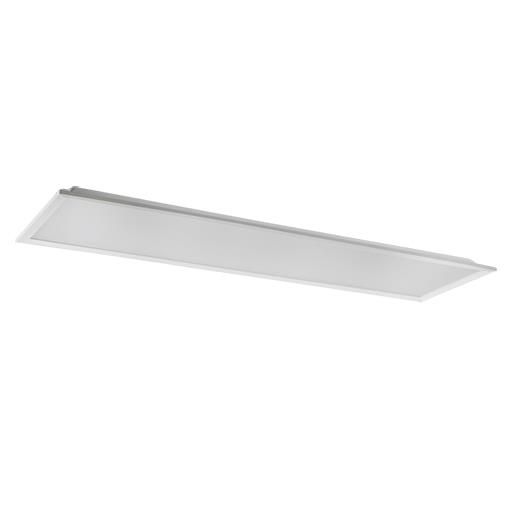

Product image 1: NLED4034 36W 296×1196 5000K 学校灯盘
Product image 1: NLED4034 36W 296×1196 5000K 学校灯盘

Product image 1: NLED4034 36W 296×1196 5000K 学校灯盘



IP
40

IK
04

产品描述： 光源类型：SMALITE LED SMD 驱动电源：外置隔离恒流电源 灯体材质：SPCE+PS 表面处理：烤漆 灯体颜色：99半光白 系列可选： 灯具规格：600×600/296×1196（mm） 安装方式：吊装 蓝光危害：RG0 波动深度：<1% 防护等级：IP40 色温 ：4000K/5000K 显指 ：Ra90 功率 ：36W 功率因数PF：0.95 光通量 ：3060lm（36W） 更新说明： 暂无更新，敬请期待。

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 35.5 W 3060 lm 86 lm/W 5000 K 90
NLED4034 36W 296×1196 5000K 学校灯盘

NLED4034 36W 296×1196 5000K 学校灯盘

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 296 mm

Width: 1196 mm

Height: 35 mm

Weight: 2.88 kg

Adjustability

Fixed

Electric

System power: 35.5 W

Appliance Class: II

Protection

IP: 40

IK: 04

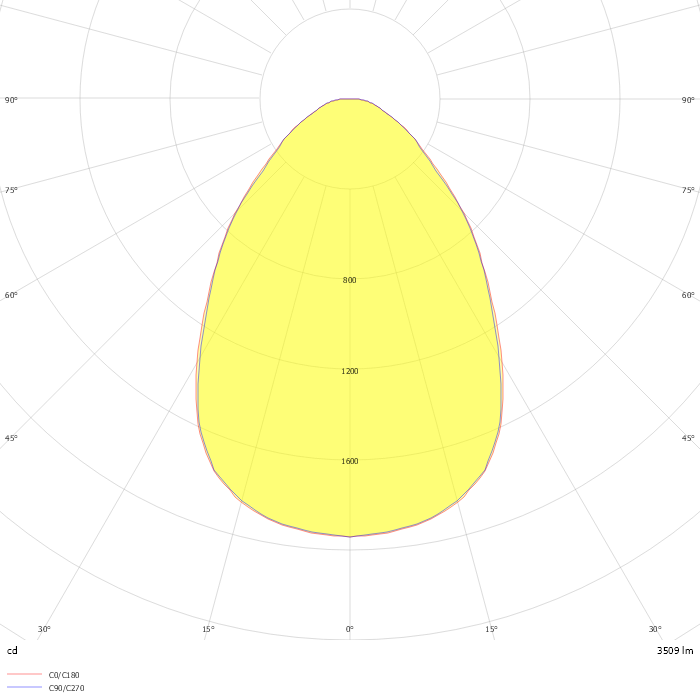

Photometric data

ZIP file

Download file
