Product data sheet

Ceiling and wall mounted luminaire Cobra Linie 75W CRI > 80

2010.5218 - COBRA CW7000 LED7000-840 WH DALI PA

Regent

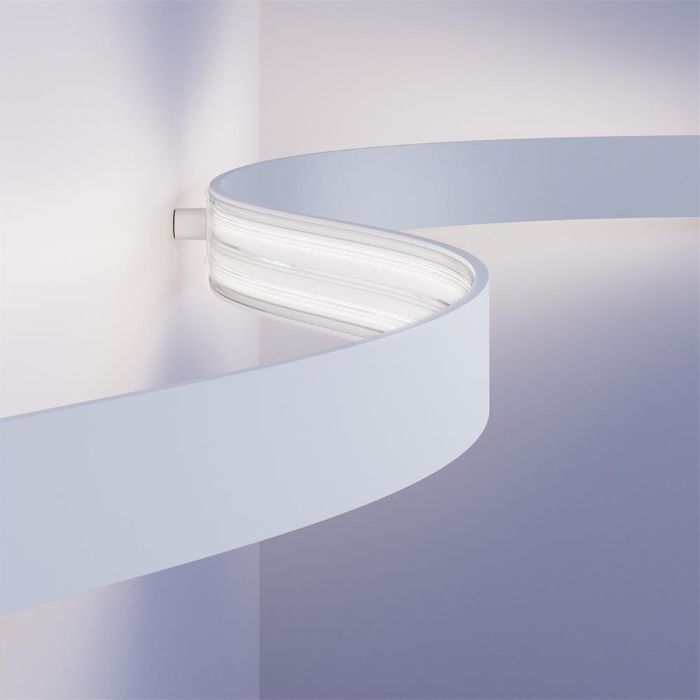

Product image 1: Ceiling and wall mounted luminaire Cobra Linie 75W CRI > 80
Product image 1: Ceiling and wall mounted luminaire Cobra Linie 75W CRI > 80

Product image 1: Ceiling and wall mounted luminaire Cobra Linie 75W CRI > 80



IP
20

IK
06

Ceiling and wall mounted luminaire Cobra Linie, with LED, system power: 75 W, standby power <0.5 W, luminous flux of luminaire 7000 lm, colour rendering index CRI > 80, colour temperature 4000 K, neutral white, colour tolerances SDCM 3, lifetime LED L80 50'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, indirect light emission, cover in PMMA, white, -M (matt), diffuser in polymethyl methacrylate (PMMA) wide beam, 1 integral control gear, DALI2, protection class II, ingress protection IP20, glow wire test 650 °C, impact strength: IK 06, L = 7000 mm, B = 120 mm, H = 60 mm

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12.3 W 7000 lm 569 lm/W 4000 K 80
Ceiling and wall mounted luminaire Cobra Linie 75W CRI > 80

Ceiling and wall mounted luminaire Cobra Linie 75W CRI > 80

Light output 1

1 x LED

Mounting mode

Wall mounted

Shape and measurements

Length: 7000 mm

Width: 127 mm

Height: 60 mm

Weight: 0.004 kg

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 75 W

Appliance Class: II

Protection

IP: 20

IK: 06

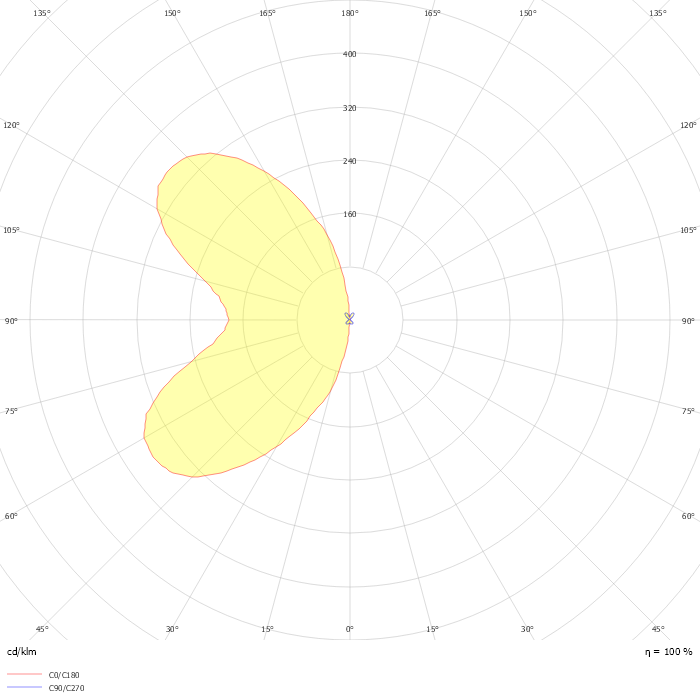

Photometric data

ZIP file
