Product data sheet

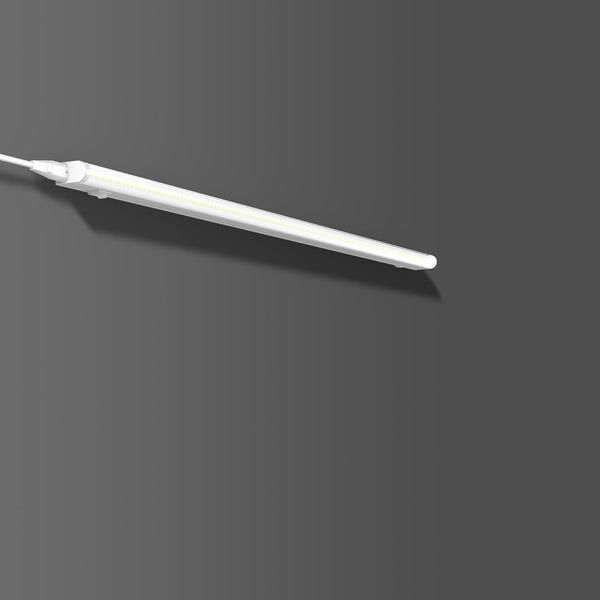

Strip-Light LED

451158.002.1

RZB

Series: Strip-Light LED Type of Protection: IP 20 Protection Class: II Voltage: 220 - 240 V / 50 - 60 Hz "Very compact linear luminaire with rocker switch and MM mark;" "suitable for virtually all indoor lighting requirements. Housing: plastic, white;" "cover: plastic, prismatic; incorporated control gear and" LED. Optionally available cables for through-wiring "without tools; incl. 1,800mm power supply cable" and 160mm connecting cable, straight coupling and clips for wall and ceiling mounting "(which allow for very easy tool-free luminaire installation and maintenance);" max. 12 luminaires can be connected in series. Available Colours: white Type of Installation: Ceiling mounting, Wall (surface) Dimensions: L 836, B 23, H 37 Lamp: LED Life time: 25000 h (L70/B50) Colour Temperature: 4000K Socket 1: without socket Operating Mode Lamp 1: Regulated power supply Safety Marks: F-mark, MM Impact Protection: IK02 (0,20 Joule) Luminaire flux LED: 1250lm System power: 13W Beam Angle: 176°/113° Unified Glare Ratio: 25,8 EEC: A+

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 13 W 1250 lm 96 lm/W 4000 K 80
Strip-Light LED

Strip-Light LED

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 23 mm

Width: 836 mm

Height: 37 mm

Adjustability

Fixed

Electric

System power: 13 W

Protection

IP: 20

IK: 02

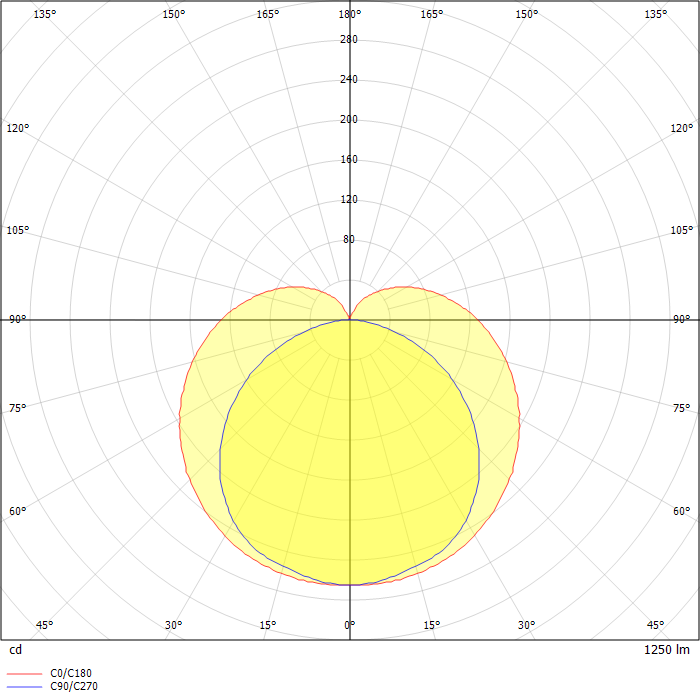

Photometric data

ZIP file
