Product data sheet

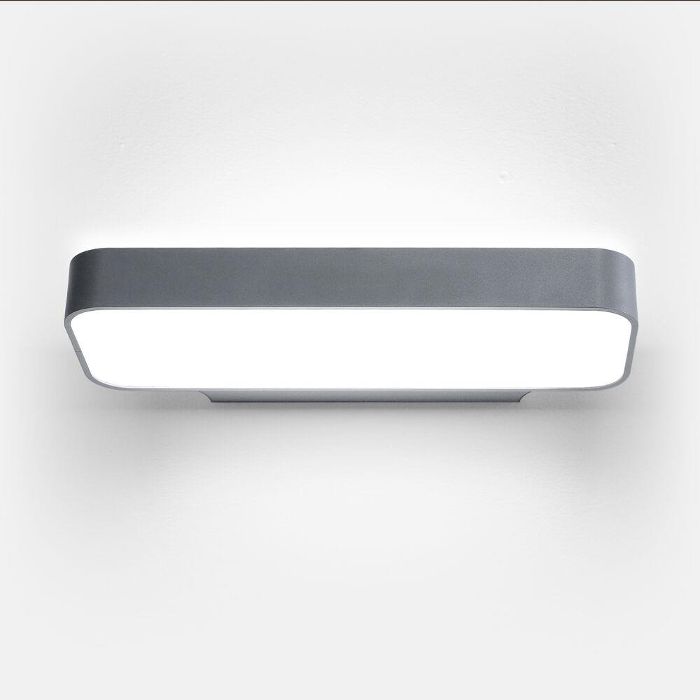

Caleo Wall - W3

AW3OSE-840M-L610

Lightnet

LED wall mounted luminaire. Direct-indirect light distribution. Luminaire body made of aluminum profile. Surface silver, white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 33 W 4020 lm 122 lm/W 4000 K 82
Caleo Wall - W3

Caleo Wall - W3

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 610 mm

Width: 200 mm

Height: 55 mm

Adjustability

Fixed

Electric

System power: 33 W

Protection

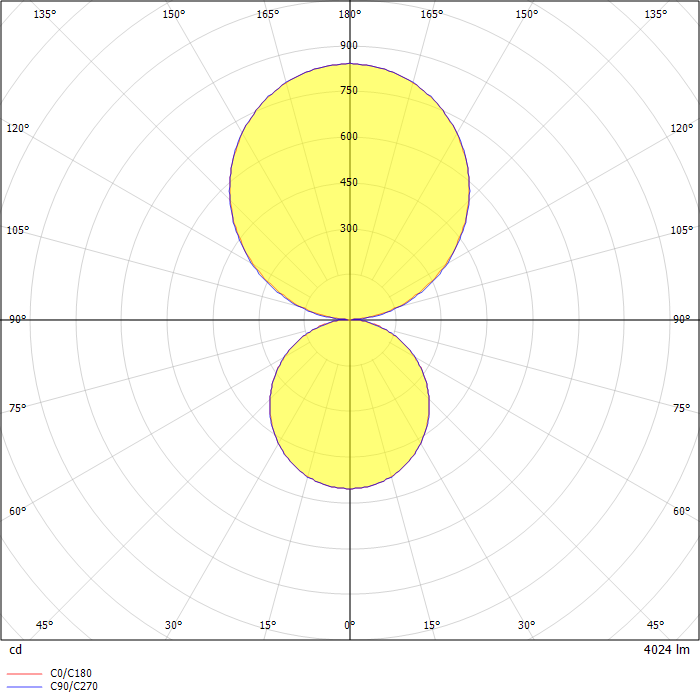

Photometric data

ZIP file
