Product data sheet

Candle 5 Bodies Chandelier

00-8317-60-27

LedsC4

Product image 1: Candle 5 Bodies Chandelier
Product image 1: Candle 5 Bodies Chandelier

Product image 1: Candle 5 Bodies Chandelier



IP
20

LedsC4 Candle 5 Bodies Chandelier 00-8317-60-27 Pendant for indoor use. For downlighting. Structure material: Steel, Aluminium. Structure finish: Black. Diffuser material: Methacrylate. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 2.6 Product width or diameter (mm): 220 Product height (mm): 350-3000 Class 1. IP: IP20. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Driver brand: TCI. Maximum power of light source: 15.6W. Colour temperature: 2700K. Colour rendering index: 90. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 22.4. Photobiological risk: RG1. % de Flickering: <5%. Real flux (lm): 844. Real lm/W: 50. Voltage / frequency range: 99-264/50-60Hz. Voltage: 9. Equipment included: Yes. Total power: 16.8. Power factor: 0.96. Dimmable equipment included: 0-10V / 1-10V / PUSH/ DALI.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.23 W 169 lm 40 lm/W 2700 K 80
Candle 5 Bodies Chandelier

Candle 5 Bodies Chandelier

Light output 1

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.23 W 169 lm 40 lm/W 2700 K 80
Candle 5 Bodies Chandelier

Candle 5 Bodies Chandelier

Light output 2

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.23 W 169 lm 40 lm/W 2700 K 80
Candle 5 Bodies Chandelier

Candle 5 Bodies Chandelier

Light output 3

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.23 W 169 lm 40 lm/W 2700 K 80
Candle 5 Bodies Chandelier

Candle 5 Bodies Chandelier

Light output 4

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 4.23 W 169 lm 40 lm/W 2700 K 80
Candle 5 Bodies Chandelier

Candle 5 Bodies Chandelier

Light output 5

1 x LED

Mounting mode

Pendant, Table luminaire

Shape and measurements

Length: 25 mm

Width: 25 mm

Height: 316 mm

Adjustability

Fixed

Electric

System power: 21.15 W

Appliance Class: I

Protection

IP: 20

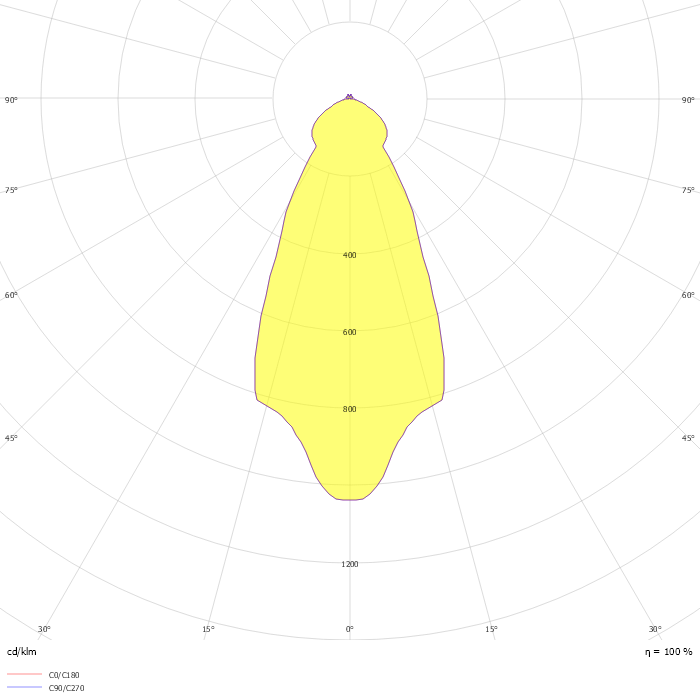

Photometric data

ZIP file

Download file
