Product data sheet

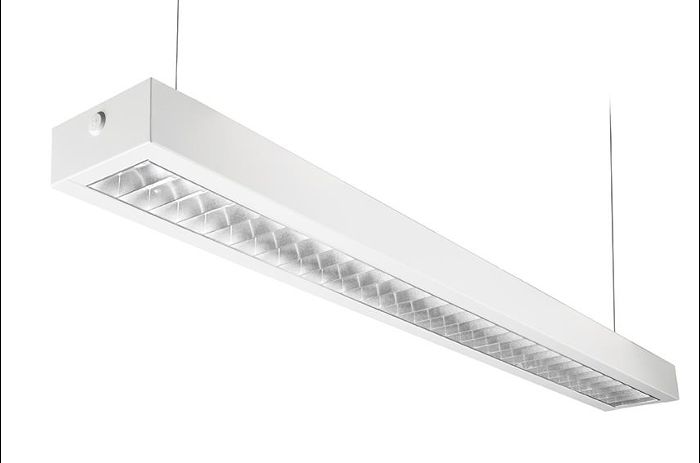

EcoLine Office 1500 White 4710lm 4000K Ra>80 On/Off

5703821172486

SG Armaturen

Luminaire suspended/surface-mounted directly in 3000 or 4000 Kelvin LED. Flat design, powder-coated white RAL9010 gloss 25. Double parabolic reflector and diffuser with option of dimmable solution (DALI/SwitchDim). Plug-and-play solution for quick installation. Adjustable wire suspension (2x2 m) ordered as accessory. Light Distribution Direct Light technic LED 35W 4000K Ra>80 SDCM 3 L80/B10 >50.000 hrs Control/Dimming On/Off Protection Class I IP20 Materials and finish Housing: Sheet steel Colour: White (Pure white, 25% gloss) Optics: Double parabolic louvre, satin matt, Aluminium Mounting/Connection Suspended or surface, Indoor Screwless terminal block Max. luminaires per circuit breaker: B10: 16, B16: 26, C10: 27, C16: 44

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 35 W 4710 lm 135 lm/W 4000 K 80
EcoLine Office 1500 White 4710lm 4000K Ra>80 On/Off

EcoLine Office 1500 White 4710lm 4000K Ra>80 On/Off

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 59.06 in

Width: 5.59 in

Height: 2.48 in

Adjustability

Fixed

Design

Color of housing: White

Electric

System power: 35 W

Appliance Class: I

Protection

IP: 20

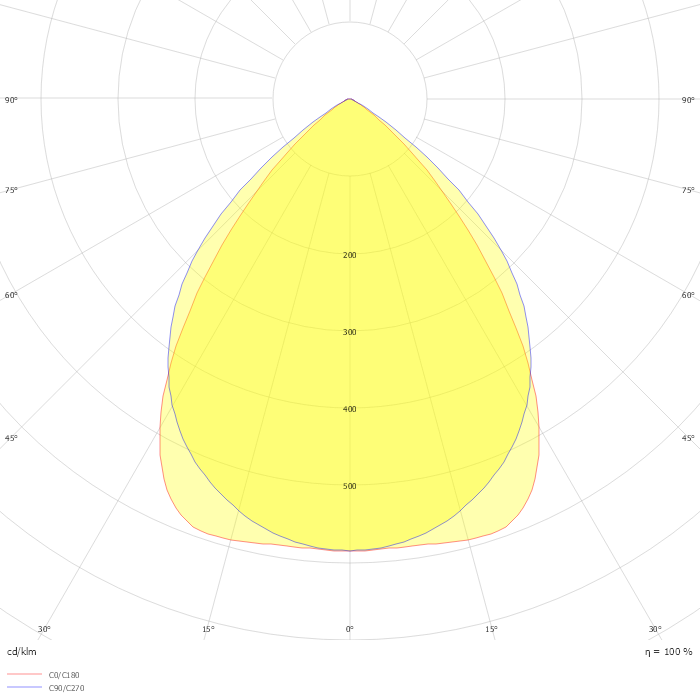

Photometric data

ZIP file
