Product data sheet

KMB019ML

KMB019ML

RP-TECHNIK

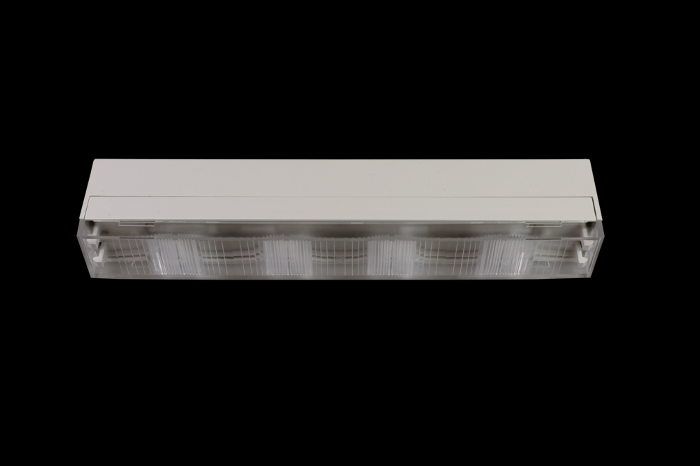

Product image 1: KMB019ML
Product image 1: KMB019ML

Product image 1: KMB019ML



IP
54

IK
03

Compact safety luminaire for universal mounting. The narrow rectangular plastic housing is discreetly reduced to the essentials. Illumination of the escape and emergency routes is assisted by the optics integrated in the surround. Universal mounting includes fitting on the wall and ceiling as well as the option of fitting in the ceiling in conjunction with the mounting frame available.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 32 W 220 lm 7 lm/W 6500 K 75
KMB019ML

KMB019ML

Light output 1 (emergency)

1 x LED

Mounting mode

Ceiling mounted, Wall recessed

Shape and measurements

Length: 9.84 in

Width: 1.34 in

Height: 1.97 in

Adjustability

Fixed

Design

Color of housing: White

Electric

System power: 32 W

Appliance Class: I

Information regarding emergency functions

Emergency lighting only

Emergency sign: N/A

Protection

IP: 54

IK: 03

Designation labels: CE

Other operating numbers

Ambient temperature range: -22...104°F

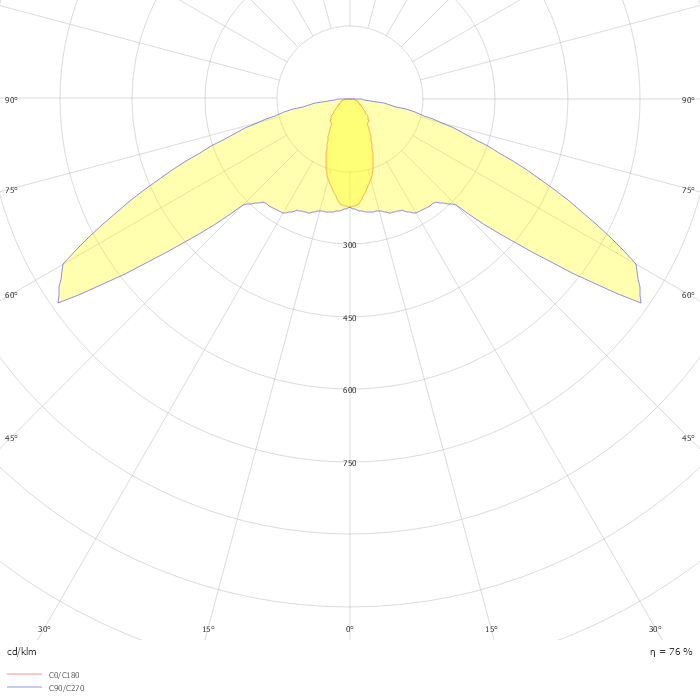

Photometric data

ZIP file

Download file
