Product data sheet

SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA

723-73-UP-26-27-X

Exenia

Product image 1: SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA
Product image 1: SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA

Product image 1: SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA



IP
40

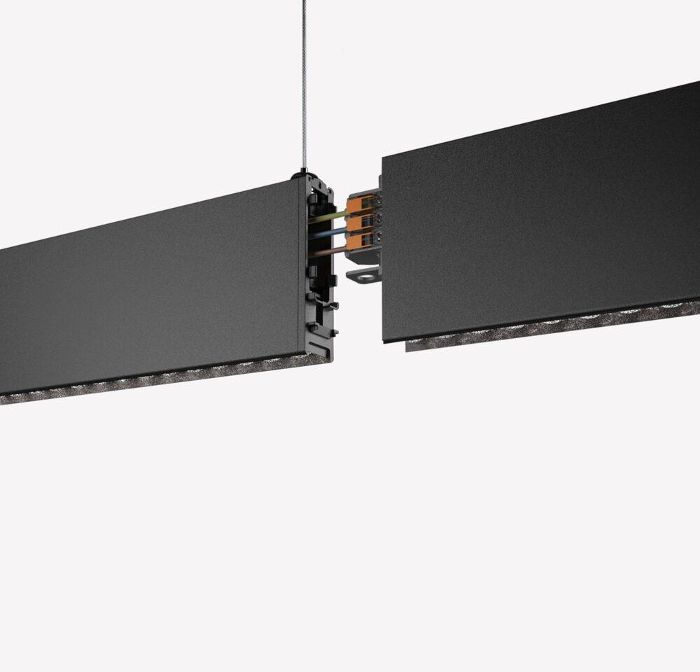

The new polyspherical or linear fly-eye optics have made it possible to conceive innovative lighting units with absolutely unique size/performance ratios. The Superlinea project aims to make system composition easy and intuitive by offering simple pre-assembled modules, with driver on board, to be connected in sequence with quick couplings and very few additional elements. The configurations offered are divided between: linear modular system in ceiling or suspension mode and simplified stand-alone, ceiling or suspension mode. We have prioritised longitudinal and transverse visual comfort in order to achieve consistently low UGR factors and efficiencies in the region of 140 lumens/W, while maintaining the slim, minimalist design typical of the Exenia style. Each suspended unit is available in single-emission and bi-emission modes

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 50.8 W 6983 lm 137 lm/W 3500 K 92
SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA

SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA

Light output 1

1 x LED

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 50.8 W 6983 lm 137 lm/W 3500 K 92
SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA

SuperLinea System 3072 Up LED 45.4W RA92 3500k 230V/50Hz IP40 Extra Wide Flood - UP 100mA

Light output 2

1 x LED

Mounting mode

Pendant

Shape and measurements

Length: 0.94 in

Width: 121.10 in

Height: 22.72 in

Adjustability

Fixed

Electric

System power: 101.6 W

Protection

IP: 40

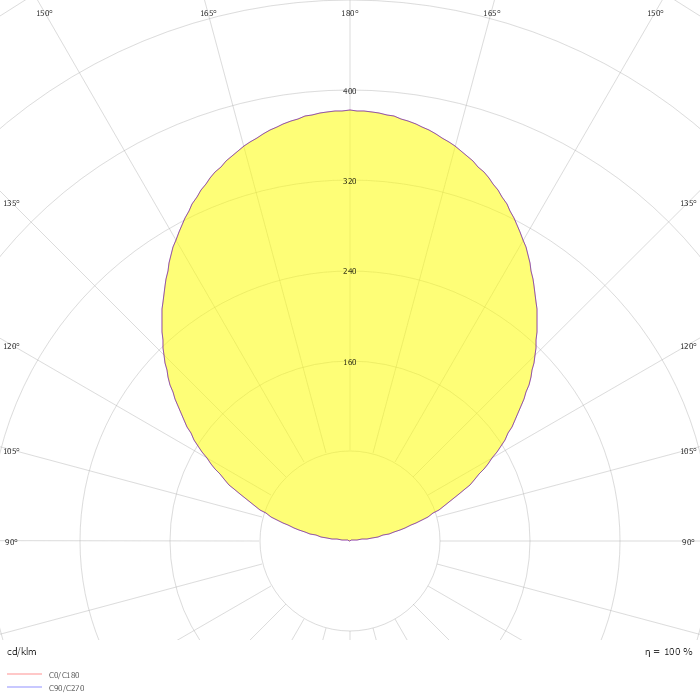

Photometric data

ZIP file
