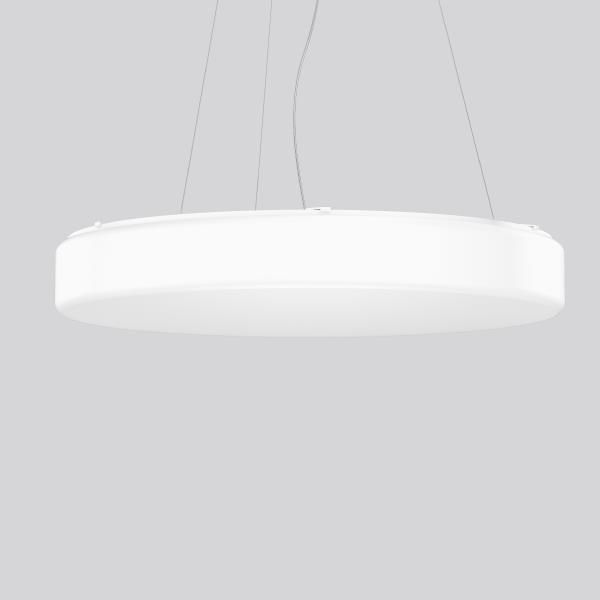

Series: FLAT POLYMERO KREIS XXL Decorative round LED pendant luminaire. Base and canopy: metal, powder-coated, white. Canopy Ø 205 mm, h 35 mm. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser fastening: sash lock. Homogeneous and smooth light distribution. Suitable for pendant. 3-point steel cable suspension, steplessly adjustable. Special lengths available on request. Colour: white Diameter: 1040 mm Height: 150 mm Suspension length: 600-1300 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 100 W Rated luminous flux: 10400 lm Beam angle Down: 124° Luminous efficiency: 104 lm/W Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 40
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 100 W | 10400 lm | 104 lm/W | 4000 K | 80 |
Mounting mode
Pendant
Shape and measurements
Height: 5.91 in
Diameter: 40.94 in
Adjustability
Fixed
Electric
System power: 100 W
Protection
IP: 40
IK: 07

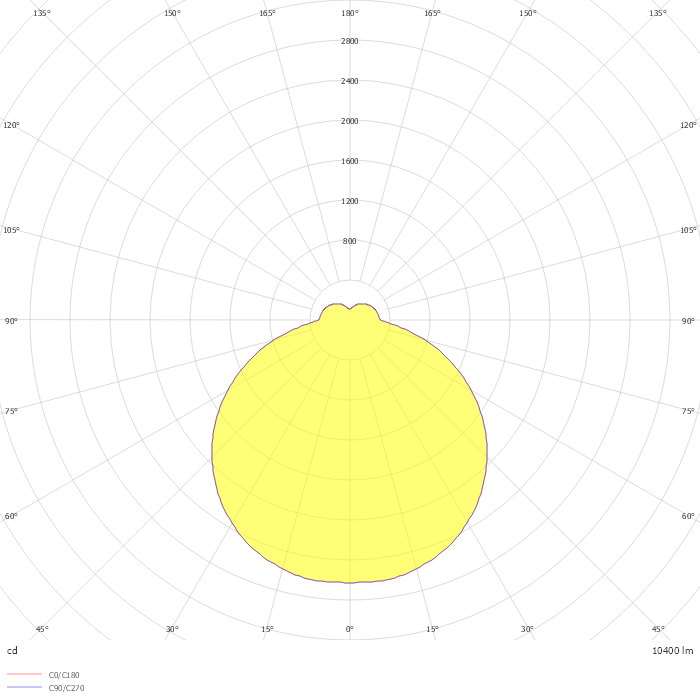

Photometric data
ZIP file
