Product data sheet

FIL45 SUR 1120 4000 WW D/I OP COMF WH.

F41SF112MOIP830NW

Lamp

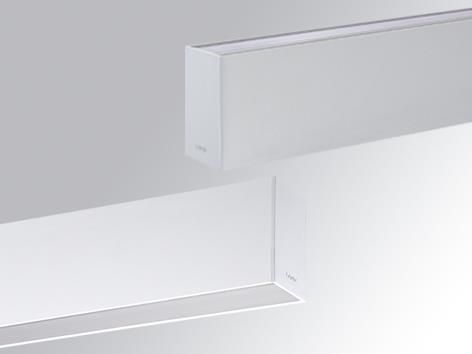

Product image 1: FIL45 SUR 1120 4000 WW D/I OP COMF WH.
Product image 1: FIL45 SUR 1120 4000 WW D/I OP COMF WH.

Product image 1: FIL45 SUR 1120 4000 WW D/I OP COMF WH.



IP
20

IK
07

Suspended or mounted surface structure model FIL45 SUR 1120 4000 NW D/I OP COMF BK., LAMP brand. Made of extruded aluminium painted in matt black. Indirect-direct light. With OP COMFatic polycarbonate diffuser. Model for LED MID-POWER, neutral white color temperature and control gear included. With IP20, IK07 protection rating. Insulation class I. Photobiological safety group 0.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 28.3 W 2525 lm 89 lm/W 3000 K 80
FIL45 SUR 1120 4000 WW D/I OP COMF WH.

FIL45 SUR 1120 4000 WW D/I OP COMF WH.

Light output 1

1 x LED

Mounting mode

Pendant, Ceiling mounted

Shape and measurements

Length: 50.08 in

Width: 3.74 in

Height: 3.94 in

Adjustability

Fixed

Design

Material impression: Plastic

Designer: TREVOS

Electric

System power: 28.3 W

Ballast: ECG

Controller: DALI

Appliance Class: I

Protection

IP: 20

IK: 07

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -13...104°F

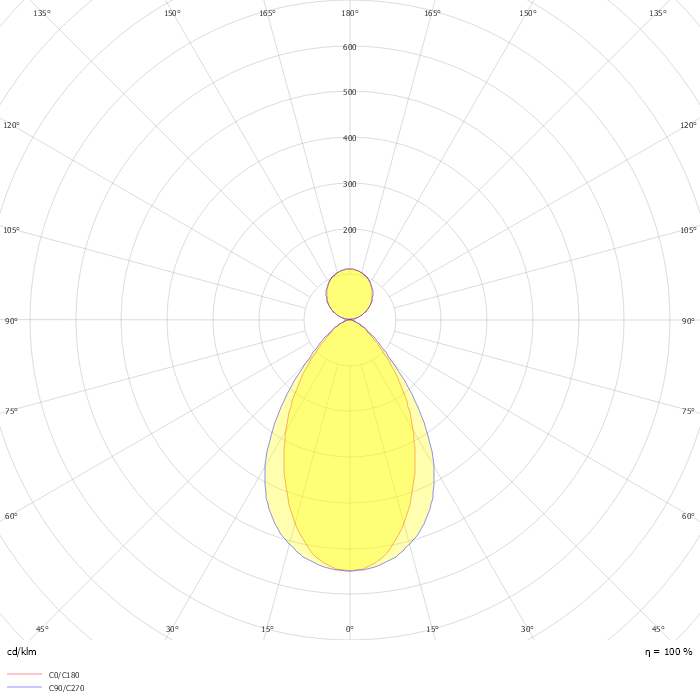

Photometric data

ZIP file

Download file
