Product data sheet

ECLCYC100

ECLCYC100_3200K_3060DEG FILTER

Prolights

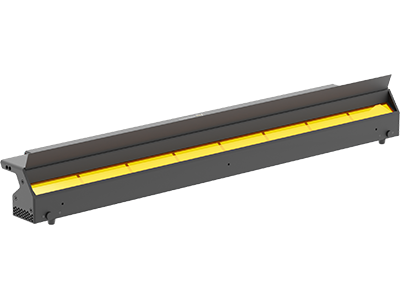

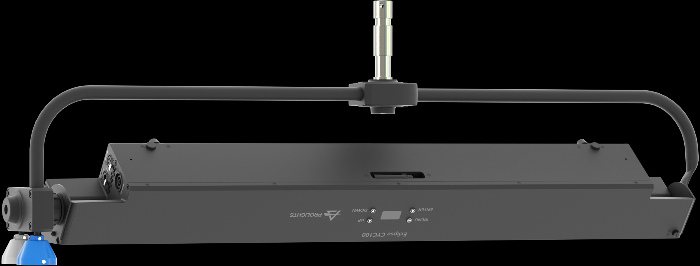

Product image 1: ECLCYC100
Product image 1: ECLCYC100

Product image 1: ECLCYC100



Product image 2: ECLCYC100

Product image 2: ECLCYC100



Product image 3: ECLCYC100

Product image 3: ECLCYC100



IP
20

IK
08

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The Optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX. Features: RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours. Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage. Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 189.7 W 14611 lm 77 lm/W 3268 K 94
ECLCYC100

ECLCYC100

Light output 1

1 x LED

Mounting mode

Standing / Bollard, Pole top mounted

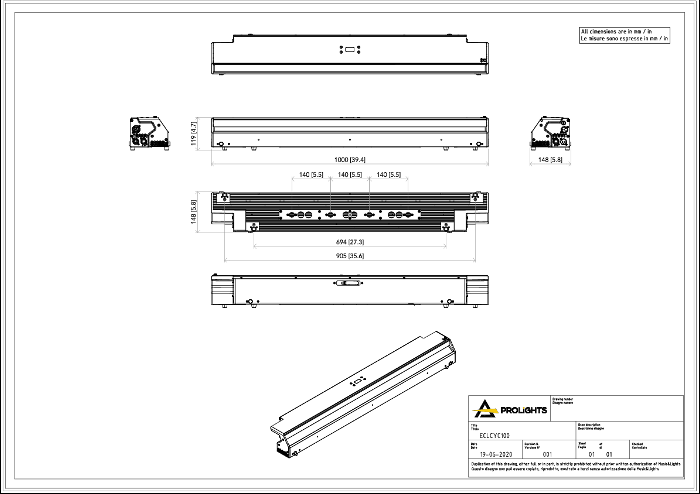

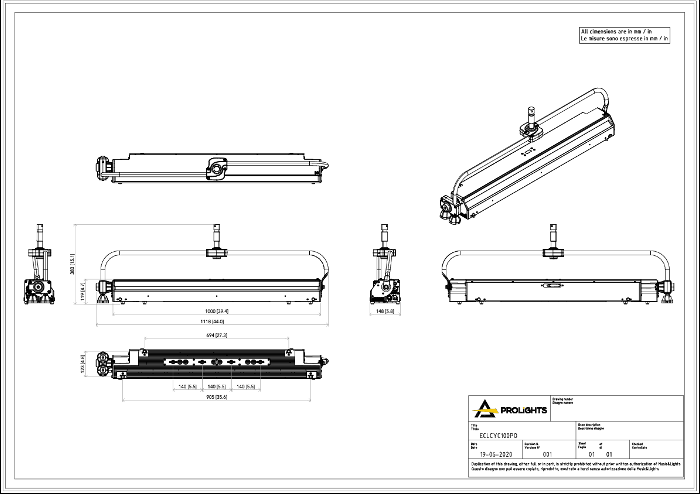

Shape and measurements

Length: 33.15 in

Width: 0.33 in

Height: 0.33 in

Adjustability

Tiltable

Electric

System power: 189.7 W

Controller: DMX

Color adjustable

Appliance Class: I

Protection

IP: 20

IK: 08

Surface temperature: 50°C

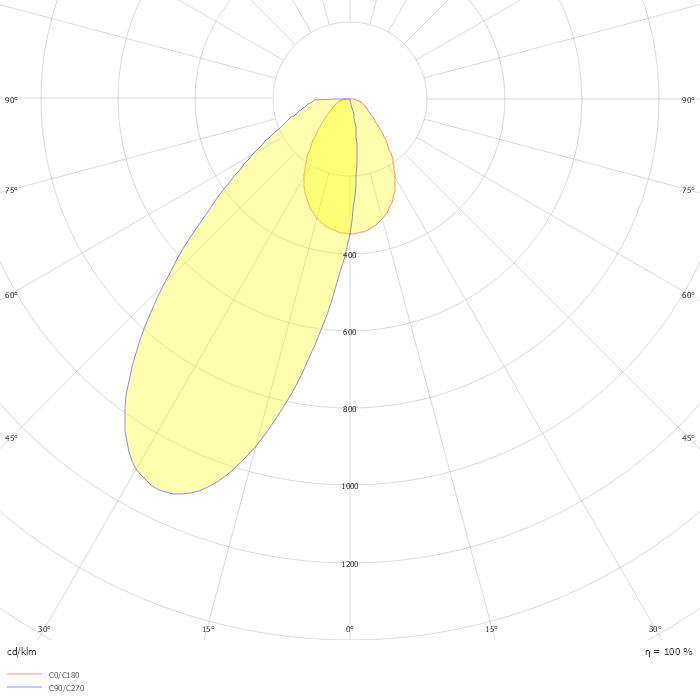

Photometric data

ZIP file

Datasheet

PDF file
