resistant to dust, humidity and spraying water, the light fitting is suitable for both indoor and outdoor roofed industrial spaces; variable suspension spacing ranging from 970 - 1230 mm; enable the light to be installed onto suspension fittings left over from previous lighting; optimal mounting height: 3 to 8 m; ON/OFF electronic driver (AC, DC on demand); Body: clear PC (high mechanical resistance, UV stability); Diffuser: clear PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003), modified for indirect lighting; Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 47,4 W; Luminaire flux: 7540 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|45 °C; Weight: 2,1 kg;
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 47.4 W | 8020 lm | 169 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 57.28 in
Width: 3.86 in
Height: 3.31 in
Adjustability
Fixed
Design
Material impression: Plastic
Color of housing: White
Designer: TREVOS
Electric
System power: 47.4 W
Ballast: ECG
Appliance Class: I
Protection
IP: 66
IK: 10
Designation labels: CE, ENEC
Other operating numbers
Ambient temperature range: -13...113°F

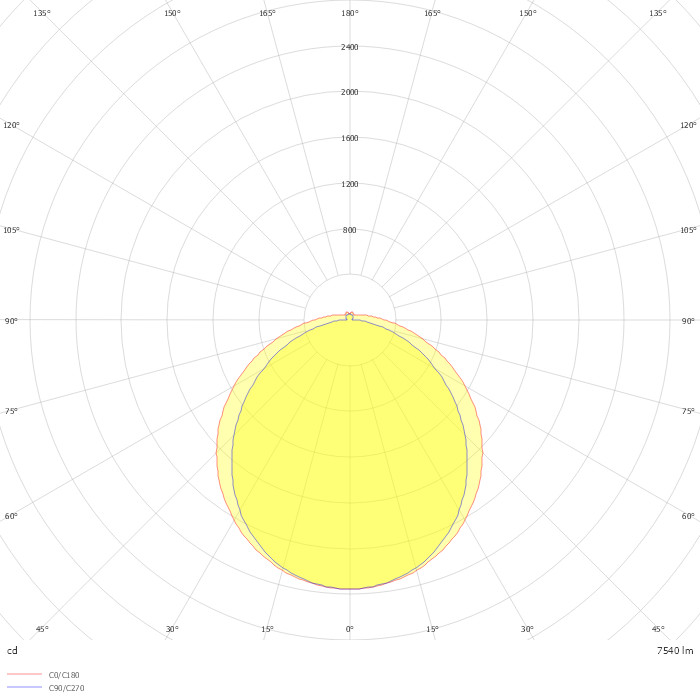

Photometric data
ZIP file
