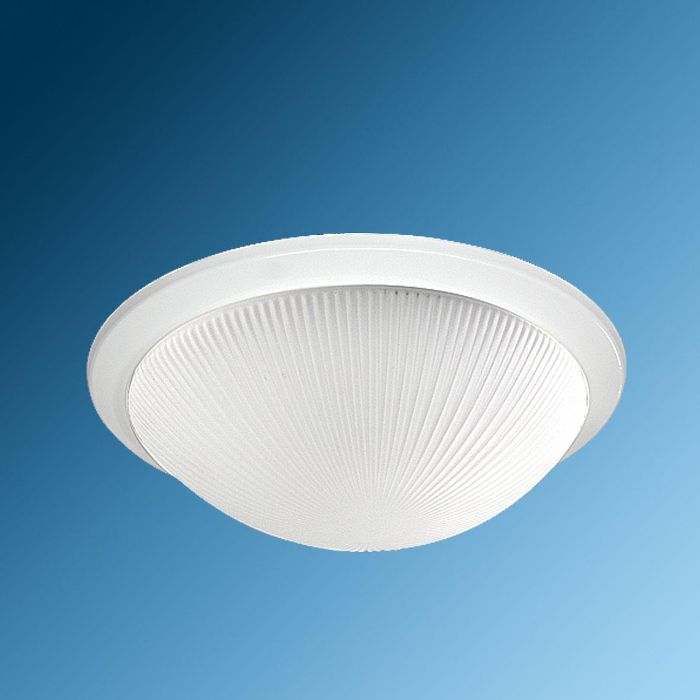

PROTON bulkhead luminaire that fits one or two incandescent and alternatively compact fluorescent lamps is state of the art Mazinoor design for mounting on ceilings outlined in the application shown below. Beautiful design, energy saving, uniform light distribution due to matt glass diffuser, and good heat exchange through the die-cast aluminium body are among the greatest advantages of this luminaire. STANDARDS: Manufactured to comply with EN 60598 / BS 4533, CE marked Application:Suitable for use where energy saving and wide light distribution is required in corridors, balconies, small rooms, rooms with low ceiling, etc.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
2 x Compact fluorescent lamp | 25 W | 1600 lm | 43 lm/W | 3850 K | 79 |
Mounting mode
Ceiling mounted
Shape and measurements
Height: 4.92 in
Diameter: 16.61 in
Adjustability
Fixed
Electric
System power: 50 W
Protection
IP: 20

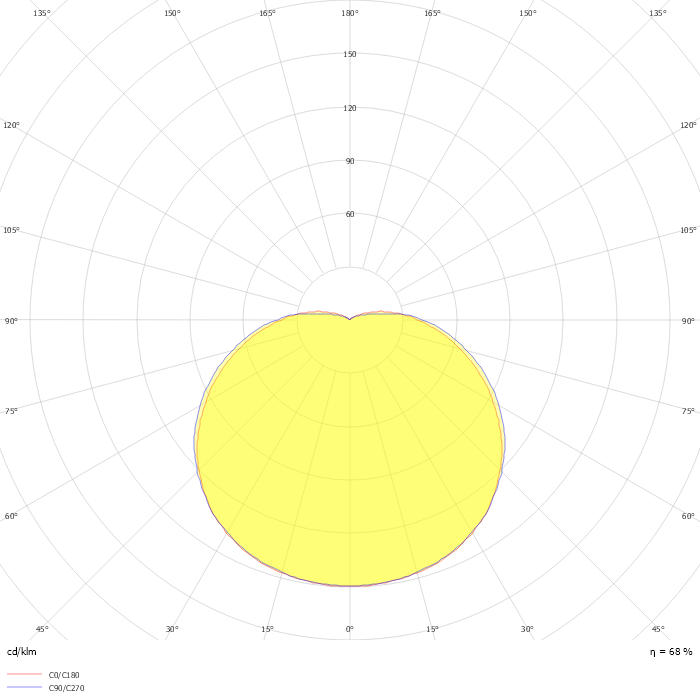

Photometric data
ZIP file
