Product data sheet

LED surface luminaire NEXXO, round, white, 12.5W, with change CCT

ZM5133

EMOS

Product image 1: LED surface luminaire NEXXO, round, white, 12.5W, with change CCT
Product image 1: LED surface luminaire NEXXO, round, white, 12.5W, with change CCT

Product image 1: LED surface luminaire NEXXO, round, white, 12.5W, with change CCT



IP
20

IK
02

power: 12.5 W replacement of incandescent bulb: 75 W luminous flux: 1 100 lm color temperature: 3 000/3 500/4 000 K body material: steel plate color rendering index (CRI): Ra > 80 beam angle: 120° type of mounting: surface dimensions: 170 × 42 mm in diameter body colour: white line: NEXXO warranty period: 3 years

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12.5 W 1099 lm 88 lm/W 4000 K 80
LED surface luminaire NEXXO, round, white, 12.5W, with change CCT

LED surface luminaire NEXXO, round, white, 12.5W, with change CCT

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 57.28 in

Width: 3.86 in

Height: 3.31 in

Adjustability

Fixed

Design

Material impression: Plastic

Designer: TREVOS

Electric

System power: 12.5 W

Ballast: ECG

Controller: DALI

Color adjustable

Appliance Class: II

Protection

IP: 20

IK: 02

Designation labels: CE

Other operating numbers

Ambient temperature range: -13...122°F

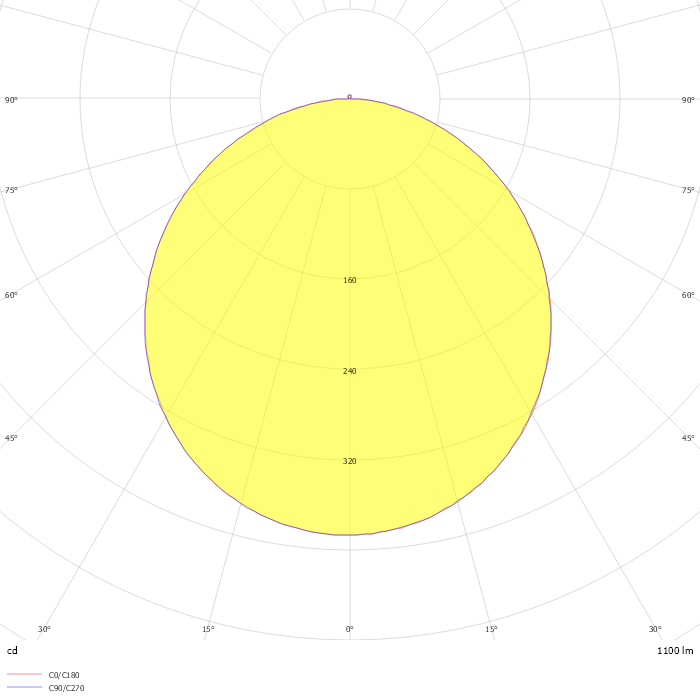

Photometric data

ZIP file

Download file
