Product data sheet

RIGMASTER™ LED LINEAR 7650 LUMEN 5000 K CCT-Clear PC

I/RMA42CPLBU

Appleton (Emerson EGS)

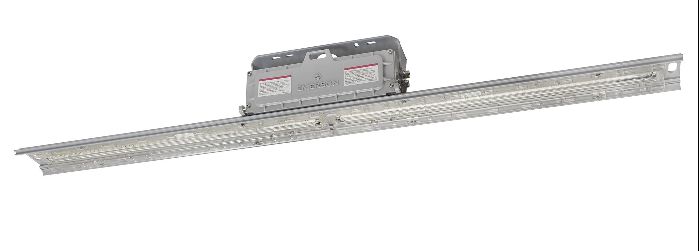

Product image 1: RIGMASTER™ LED LINEAR 7650 LUMEN 5000 K CCT-Clear PC
Product image 1: RIGMASTER™ LED LINEAR 7650 LUMEN 5000 K CCT-Clear PC

Product image 1: RIGMASTER™ LED LINEAR 7650 LUMEN 5000 K CCT-Clear PC



IP
66

Rigmaster LED Linear Series Ceiling/ Pendant Mount 3/4" NPT Hub NEMA Type V Symmetrical 5000 K CCT/ 80 CRI Voltage- BU-120-277V, 50/60Hz BH-347-480 Vac, 50/60Hz Class I, Division 2, Groups A, B, C, D Class I, Zone 2, Group IIC Glass II, Division 2, Group F, G Class II, Zone 22, Class III Type 3R,4, 4X IP66 Suitable for Use in Wet Locations Refer to catalog for additional options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
54.3 W 7699 lm 142 lm/W 5000 K 80
RIGMASTER™ LED LINEAR 7650 LUMEN 5000 K CCT-Clear PC

RIGMASTER™ LED LINEAR 7650 LUMEN 5000 K CCT-Clear PC

Light output 1 (integrated)

Mounting mode

Ceiling mounted

Shape and measurements

Length: 3.50 in

Width: 43.25 in

Height: 3.35 in

Adjustability

Fixed

Electric

System power: 54.3 W

Appliance Class: II

Protection

IP: 66

Explosion zone suitability: 2, 22

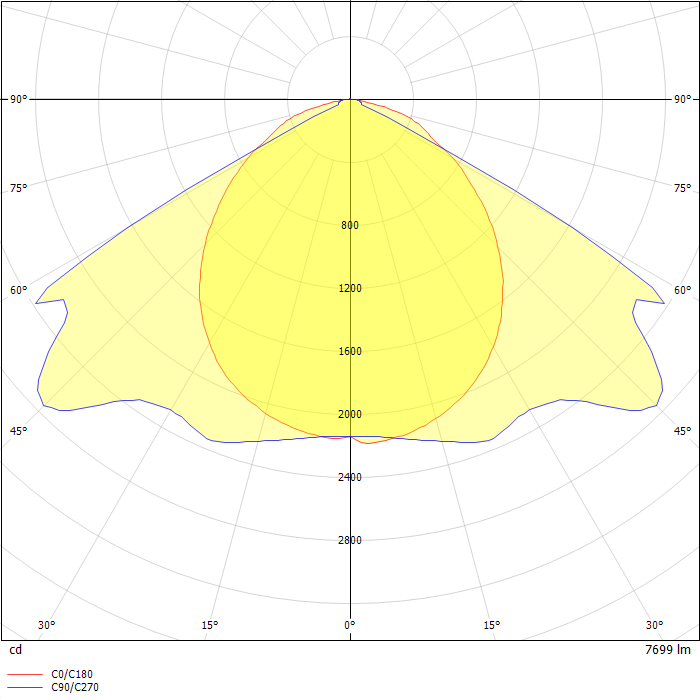

Photometric data

ZIP file

Download file
