Product data sheet

ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Glass Lens

F2U76W2Fxxxxxx

Dialight

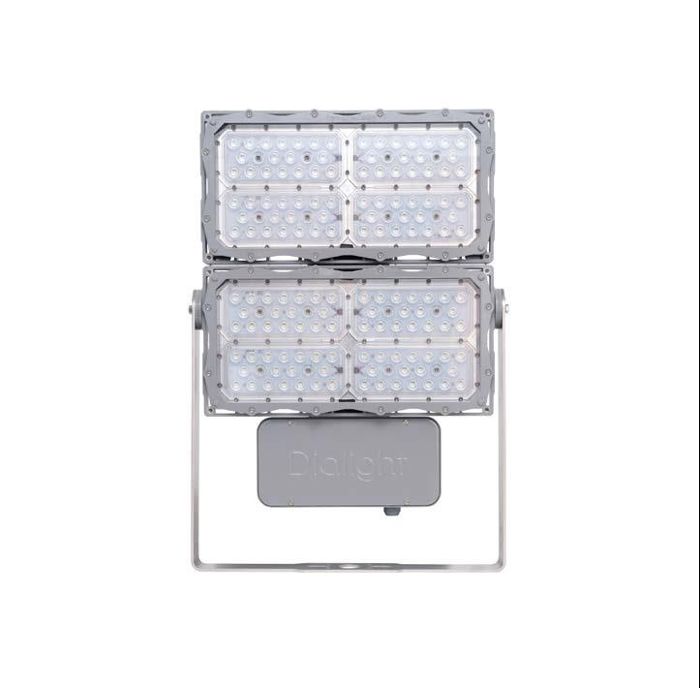

Product image 1: ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Glass Lens
Product image 1: ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Glass Lens

Product image 1: ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Glass Lens



IP
66

IK
08

ProSite LED Floodlight 23,876 Lumens 200 Watts 120-277V AC / 120-250V DC Warm White, 70CRI Glass Lens UL 1598/A CSA C22.2 No. 250 NOM IK08 NEMA 6 Distribution IP66/67 LM79 Tested IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 200 W 23876 lm 119 lm/W 3114 K 83
ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Glass Lens

ProSite LED Floodlight 30000 Lumens, NEMA 6 Distribution, Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pole top mounted

Shape and measurements

Length: 22.44 in

Width: 16.20 in

Height: 3.07 in

Adjustability

Rotatable, Tiltable

Electric

System power: 200 W

Appliance Class: I

Protection

IP: 66

IK: 08

Photometric data

ZIP file

Download file
