Product data sheet

LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, for angles and corners, 5m roll, 60 LED/m

113853

ISOLED

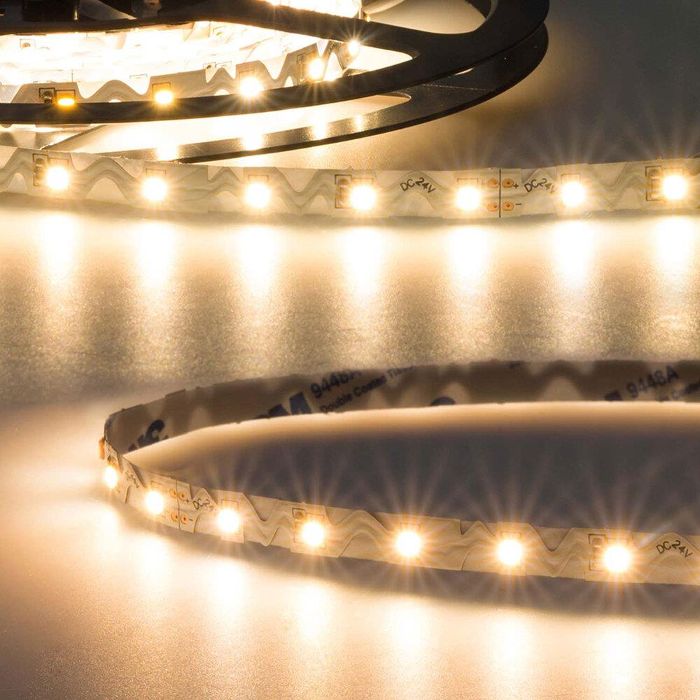

Product image 1: LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, for angles and corners, 5m roll, 60 LED/m
Product image 1: LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, for angles and corners, 5m roll, 60 LED/m

Product image 1: LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, for angles and corners, 5m roll, 60 LED/m



IP
20

LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, 5m roll, 60 LED/m | Dimensioned power: 12 W/m | Effective power: 12 W/m | Energy efficiency class: F (EU 2019/2015) | Nominal Voltage: 24 V DC | Surface color: white | Protection class: IP20 | Suitable for indoor use only | Allowable ambient Temperatures: 0° - 40° C | Beam angle: 120° fixed | Color temperature: 2700K | Color rendering index: 90 (Ra 1-8) | Luminous flux: 1200 lm/m | PWM dimmable | Useful life: 70000 h (L80|B50) | Guarantee: 2 years | Special features: Separation point: 100mm with 6 SMD each | pitch (light point center-center): 16.67mm | 1 unit (roll) = 5m | max. flex tape length per feed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease substrate before sticking! Do not remove again! | SPECIAL FEATURE: connecting cable on both sides | Dimming specification: dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer | FABRICATION: ISOLED 113853

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12 W 1200 lm 100 lm/W 2700 K 90
LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, for angles and corners, 5m roll, 60 LED/m

LED CRI927 flex stripe Curve, 24V 12W, IP20, 2700K, for angles and corners, 5m roll, 60 LED/m

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 39.37 in

Width: 0.31 in

Height: 0.04 in

Adjustability

Fixed

Design

Material impression: Copper

Color of housing: White

Electric

System power: 12 W

Ballast: ECG

Protection

IP: 20

Designation labels: CE

Other operating numbers

Ambient temperature range: 32...104°F

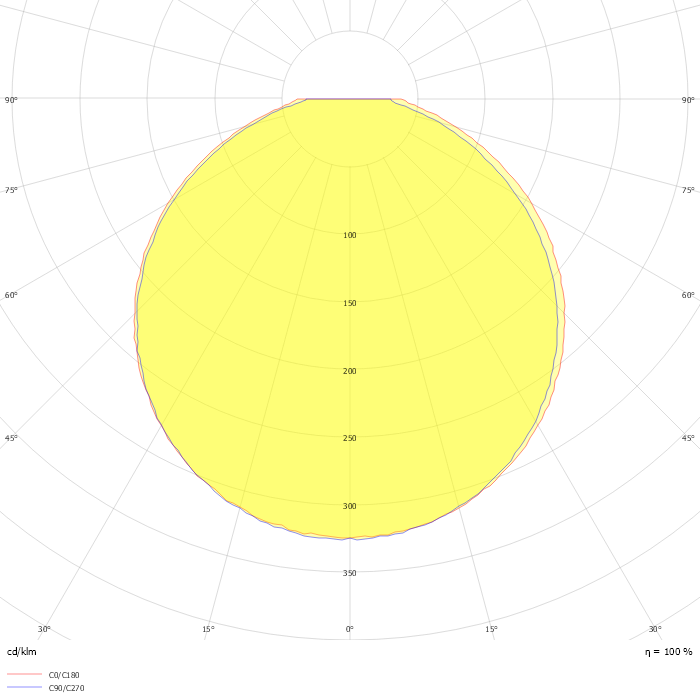

Photometric data

ZIP file

Download file
