Product data sheet

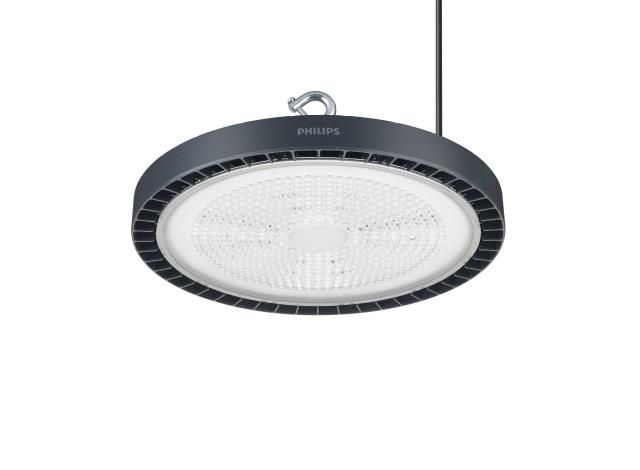

CoreLine Highbay Gen5 BY122P G5 LED250S/865 NB PSD

9243999

Philips

CoreLine highbay gen5: Easy installation. Excellent illumination. CoreLine Highbay Gen5 delivers on the CoreLine promise of innovative, easy-to-use and high-quality luminaires. A reliable, highly-efficient luminaire with a very long-lifetime, it delivers great energy savings and requires less maintenance. At the same time, CoreLine Highbay is very easy to handle. The luminaire can be installed on your existing grid and the electrical connection is a straightforward task, with no need to open the luminaire and an external IP65 connector. With a choice of two beam angles: narrow and wide beam, you can adjust your lighting plan to suit your exact needs. This range also includes Interact Ready luminaires with integrated wireless communications and integrated movement and daylight sensors. So CoreLine Highbay Gen5 is ready to be used with any Interact connected lighting system.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 168 W 25000 lm 149 lm/W 6500 K 80
CoreLine Highbay Gen5 BY122P G5 LED250S/865 NB PSD

CoreLine Highbay Gen5 BY122P G5 LED250S/865 NB PSD

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 3.94 in

Diameter: 15.51 in

Electric

System power: 168 W

Protection

IP: 65

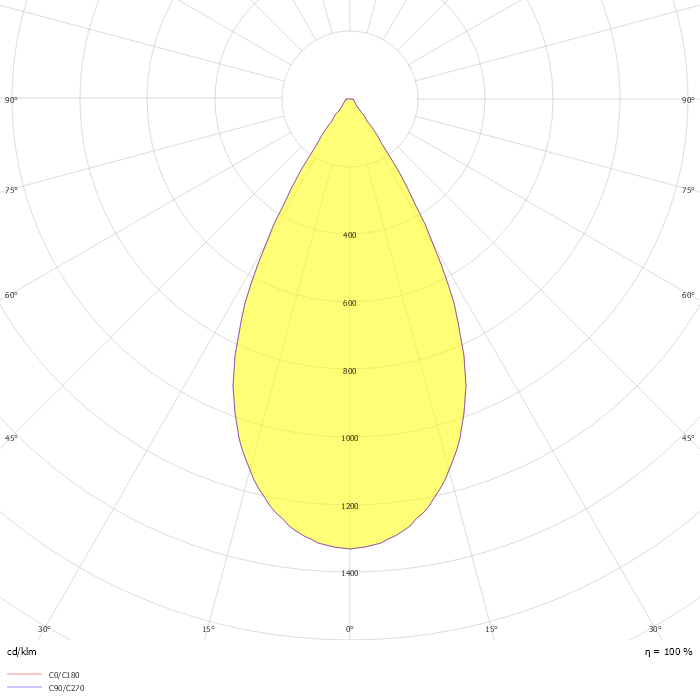

Photometric data

ZIP file
