Product data sheet

OFFICE lighting

V1-A0-00350-01OPS-4003550 A350 2.0 IP40 1195x295x50 mm 35W 5000K Opal Microwave sensor

VARTON

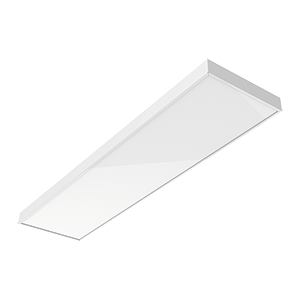

Product image 1: OFFICE lighting
Product image 1: OFFICE lighting

Product image 1: OFFICE lighting



IP
40

IK
03

Versatile office luminaire. Stainless steel housing with white powder coating. Application:administrative facilities, lobbies.Recessed and surface-mounted. Compatible with the Armstrong Prelude 24 suspended ceiling systems. Input voltage (AC, 50Hz), V: 176...264 AC frequency, Hz: 50 Flicker, %: 2 Climatic modification and category of placement: УХЛ4 Height/depth, mm: 50 Length, mm: 1 195 Protection class: I Ingress protection (IP): IP40 Impact resistance: IK03 Width, mm: 295 Power factor: 0,95 https://www.varton.ru/products/ofisnoe-osveshchenie/a-seriya-2-0/a350-2-0-ip40-ofis-1195-295-analog-2-36/svetodiodnyy-svetilnik-varton-a350-2-0-ofisnyy-vstraivaemyy-nakladnoy-35-vt-5000-k-1195kh295kh50-mm-_6/

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 35 W 4480 lm 128 lm/W 5000 K 80
OFFICE lighting

OFFICE lighting

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 47.05 in

Width: 11.61 in

Height: 1.97 in

Adjustability

Fixed

Design

Material impression: Matt

Color of housing: White

Glare protection

Glare protection: UGR < 19

Electric

System power: 35 W

Ballast: ECG

Protection

IP: 40

IK: 03

Designation labels: CE

Other operating numbers

Ambient temperature range: 68...95°F

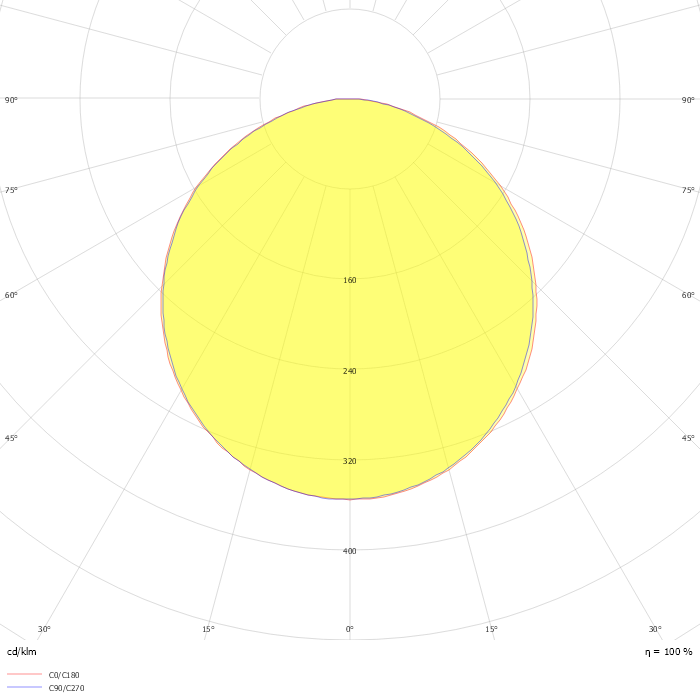

Photometric data

ZIP file

Download file
