Product data sheet

GU10-Universal

901399.003

RZB

Series: GU10-Universal Type of Protection: IP 44 Protection Class: II Voltage: 220 - 240 V / 50 - 60 Hz Recessed ring: die cast aluminium with mounting spring, rigid version, with height adjustable holder for all standard GU10 LED retrofit lamps. Available Colours: black Type of Installation: Recessed ceiling mounting Dimensions: D 85, H 3 Lamp: LED Socket 1: GU10 Operating Mode Lamp 1: Converter not necessary Safety Marks: F-mark Impact Protection: IK03 (0,35 Joule)

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 7 W 400 lm 59 lm/W 3000 K 80
GU10-Universal

GU10-Universal

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 0.12 in

Diameter: 3.35 in

Adjustability

Fixed

Electric

System power: 7 W

Protection

IP: 44

IK: 03

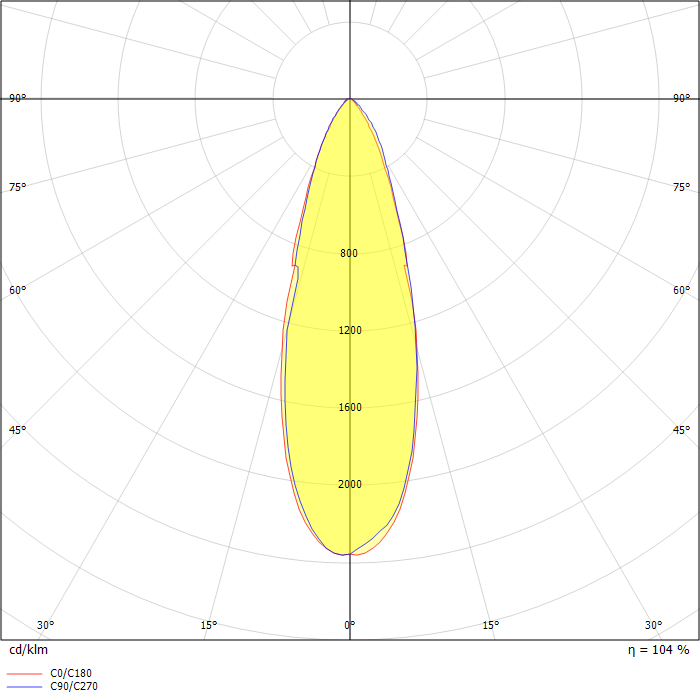

Photometric data

ZIP file
