MIRA, a family of small wall light characterized by clear and clean-cut line. Utilizing COB Led with cut-off spill light feature. It is available in round and square shapes with the choice of 2700K, 3000K and 4000K, all are 3-step SDCM. The computer-aided-design parabolic reflector provides efficient light emission and distribution. The housing is made from enhanced LM6 die-cast aluminium which make them highly corrosion resistant to any extreme environment. Dust and water protected through the extensive engineering design and testing. Spec • Designed, Manufactured and Tested according to IEC 60598-1, IEC 60598-2-1, and VDE regulations. • LM6 Die Cast Aluminium body. • Stainless steel screws. • Nano Ceramic surface conversion. • Double layer coating. • Safety glass cover. • Post-cured silicone gasket. • High quality LED module and driver. • High efficiency reflector. • Weather proof grommet. • GFR PA6.6 terminal block. • Installation work has to be carried on according to the enclosed installation manual.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 5.7 W | 920 lm | 161 lm/W | 2700 K | 80 |
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 5.7 W | 920 lm | 161 lm/W | 2700 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Length: 2.84 in
Width: 3.58 in
Height: 6.14 in
Adjustability
Fixed
Electric
System power: 14 W
Appliance Class: I
Protection
IP: 66
IK: 08

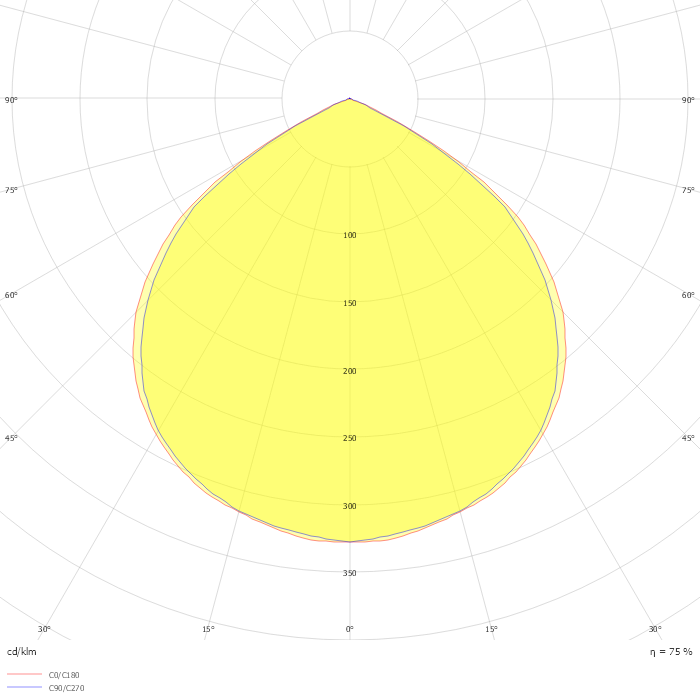

Photometric data
ZIP file
