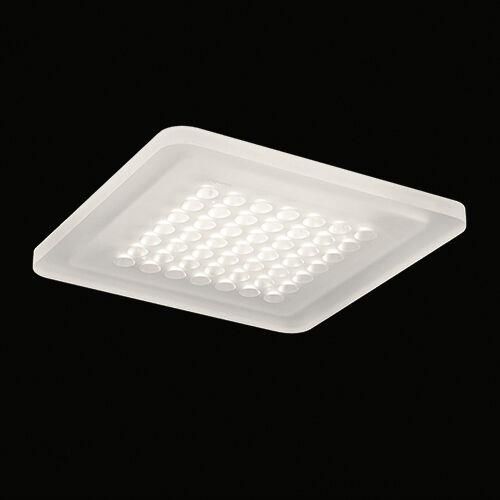

Ultra-flat LED ceiling luminaire with 10 mm thickness only, light distribution approx. 95 % direct beam, wide beam, additional ceiling lighting and very even, almost floor-to-ceiling illumination of walls by secondary light, flexible application by means of magnetic attachment, version for 24 V DC. Please order converter and mounting set separately according to your individual mounting situation. Ceiling luminaire for direct mounting 010-041 Ceiling luminaire for cavity mounting, cut-out: Ø 68 mm × d 40 mm 010-060
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 10.3 W | 1050 lm | 102 lm/W | 2700 K | 90 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 7.09 in
Width: 7.09 in
Height: 0.39 in
Adjustability
Fixed
Design
Color of housing: White
Electric
System power: 10.3 W
Protection
IP: 20

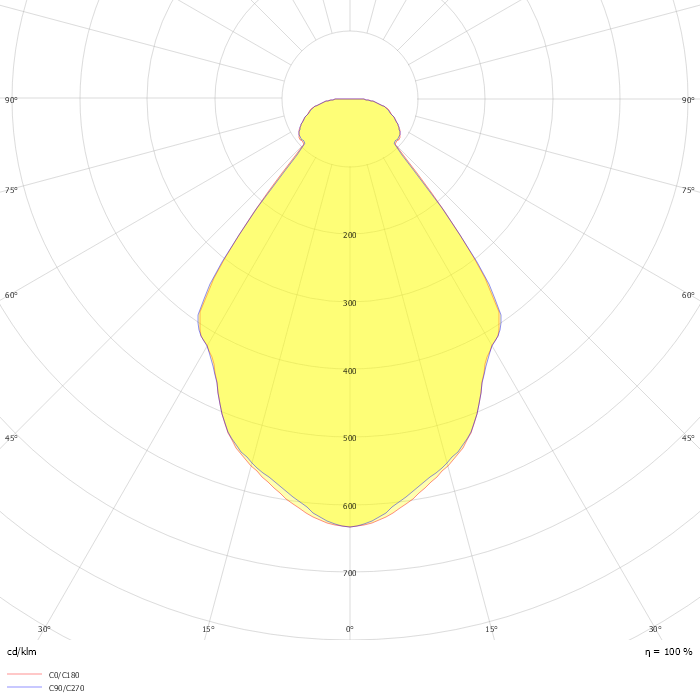

Photometric data
ZIP file
