Product data sheet

SHANTA M M13BL1 9k0 727 B104 C

SHANTA M M13BL1 9k0 727 B104 C

ELEKTRO LUMEN

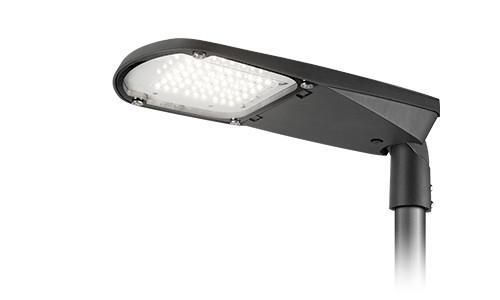

Product image 1: SHANTA M M13BL1 9k0 727 B104 C
Product image 1: SHANTA M M13BL1 9k0 727 B104 C

Product image 1: SHANTA M M13BL1 9k0 727 B104 C



IP
66

IK
08

Modern outdoor LED luminaire for public lighting with integrated overvoltage protection and adjustable joint ± 10°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 52.1 W 8100 lm 155 lm/W 2700 K 70
SHANTA M M13BL1 9k0 727 B104 C

SHANTA M M13BL1 9k0 727 B104 C

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 23.74 in

Width: 11.81 in

Height: 3.74 in

Adjustability

Tiltable

Design

Material impression: Matt

Electric

System power: 52.1 W

Ballast: ECG

Appliance Class: I

Protection

IP: 66

IK: 08

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -40...122°F

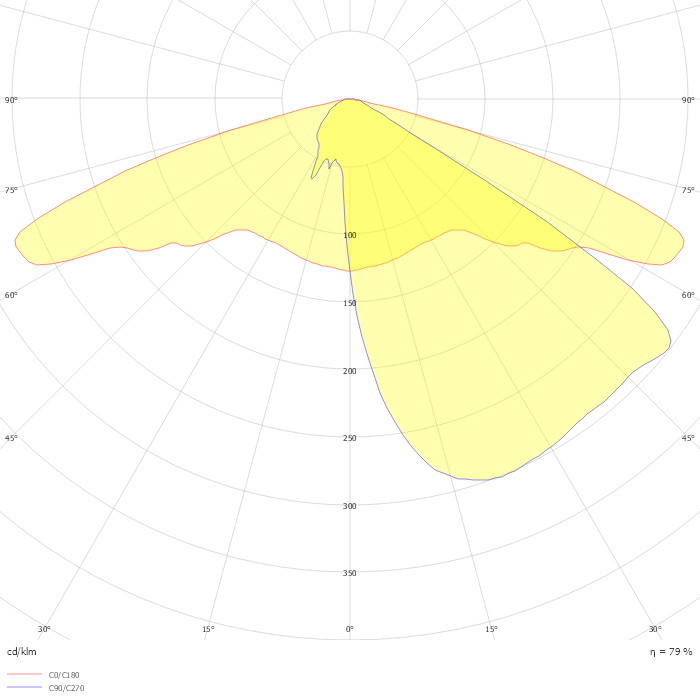

Photometric data

ZIP file

Download file
