Product data sheet

SHANTA M L43BL2 11k0 740 B544

SHANTA M L43BL2 11k0 740 B544

ELEKTRO LUMEN

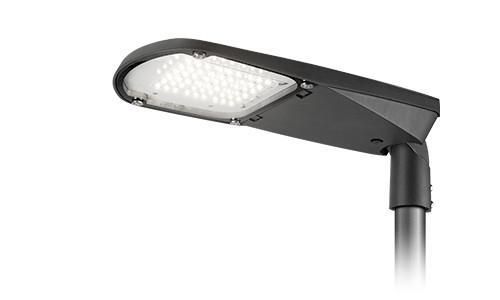

Product image 1: SHANTA M L43BL2 11k0 740 B544
Product image 1: SHANTA M L43BL2 11k0 740 B544

Product image 1: SHANTA M L43BL2 11k0 740 B544



IP
66

IK
08

Modern outdoor LED luminaire for public lighting with integrated overvoltage protection and adjustable joint ± 10°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 59.6 W 11000 lm 185 lm/W 4000 K 70
SHANTA M L43BL2 11k0 740 B544

SHANTA M L43BL2 11k0 740 B544

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 23.74 in

Width: 11.81 in

Height: 3.74 in

Adjustability

Tiltable

Design

Material impression: Matt

Electric

System power: 59.6 W

Ballast: ECG

Appliance Class: I

Protection

IP: 66

IK: 08

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -40...122°F

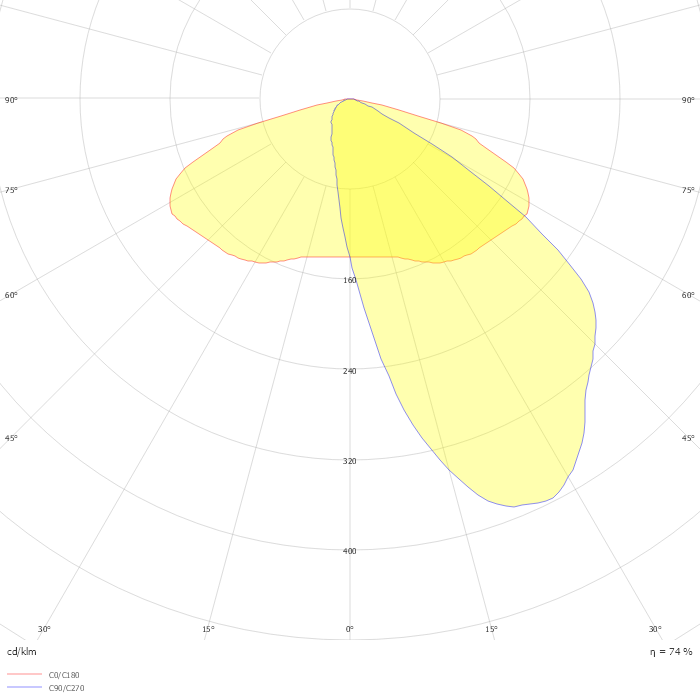

Photometric data

ZIP file

Download file
