Product data sheet

明艺LED吸顶射灯

PAK413038 PAK-LED-S206-10WB1-3090-W

PAK

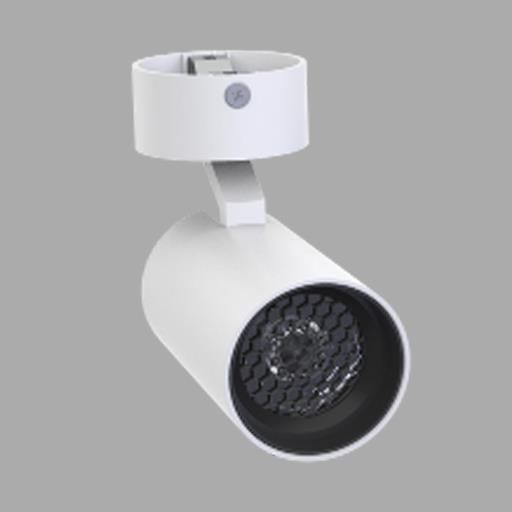

Product image 1: 明艺LED吸顶射灯
Product image 1: 明艺LED吸顶射灯

Product image 1: 明艺LED吸顶射灯



IP
20

名 称：明艺LED吸顶射灯 材 质：铝合金灯体，TIR透镜配光 功 率：10W 光 源：COB LED 色 温：2700K、3000K、4000K 显 色 性：Ra≥90 光 束 角：24° 寿 命：30000Hrs 防护等级：IP20 适配电器：LED驱动电源 工作电压：220V/50Hz 产品尺寸：Φ60x160mm 颜 色：白色、黑色

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 10 W 700 lm 70 lm/W 3000 K 91
明艺LED吸顶射灯

明艺LED吸顶射灯

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 2.36 in

Width: 2.36 in

Height: 3.55 in

Adjustability

Rotatable, Tiltable

Electric

System power: 10 W

Protection

IP: 20

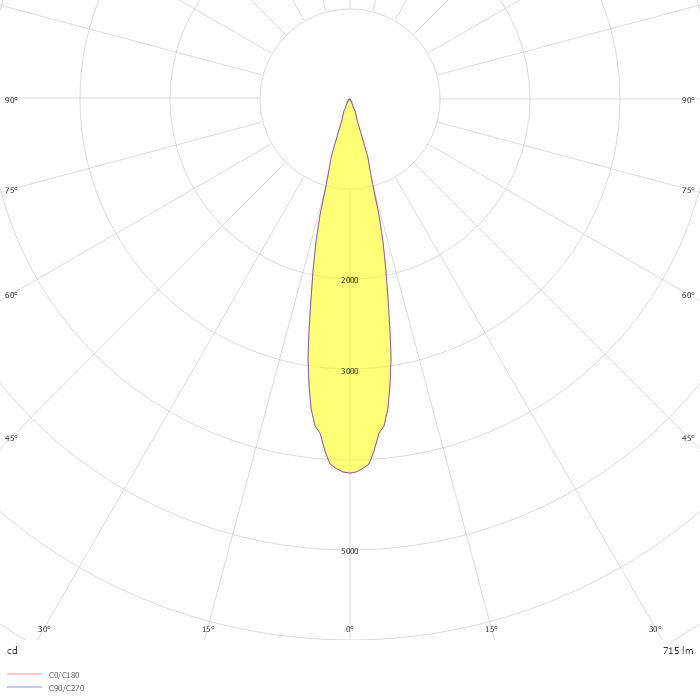

Photometric data

ZIP file

Download file
