Product data sheet
MINI REO II OK 92737
19353 9230
Delta Light

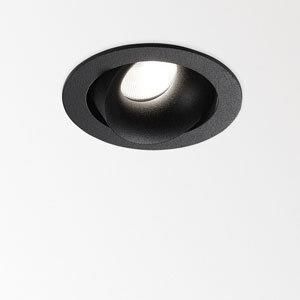

Luminaire, ceiling recessed (indoor use) from Deltalight, named MINI REO II OK 92737, available in the colour(s): black, white. For recessed mounting, a round opening with a diameter of 70 mm is needed and a min. depth for recessing of 60 mm. This luminaire is equipped with LED array 5,8-8,6W / CRI>90 (R9: 60) / 2700K / 702-974lm with an optional driver, suitable for currents of 350mA to 500mA. Light distributor: reflector 37°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 974 lm | 108 lm/W | 2700 K | 90 |
| 1 x LED | 8 W | 885 lm | 111 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 702 lm | 117 lm/W | 2700 K | 90 |
| 1 x LED | 8 W | 885 lm | 111 lm/W | 2700 K | 90 |
| 1 x LED | 6 W | 702 lm | 117 lm/W | 2700 K | 90 |
| 1 x LED | 9 W | 974 lm | 108 lm/W | 2700 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 0.08 in
Diameter: 3.03 in
Weight: 0.2 kg
Electric
System power: 6-9 W
Appliance Class: II
Protection
IP: 20
Designation labels: CE

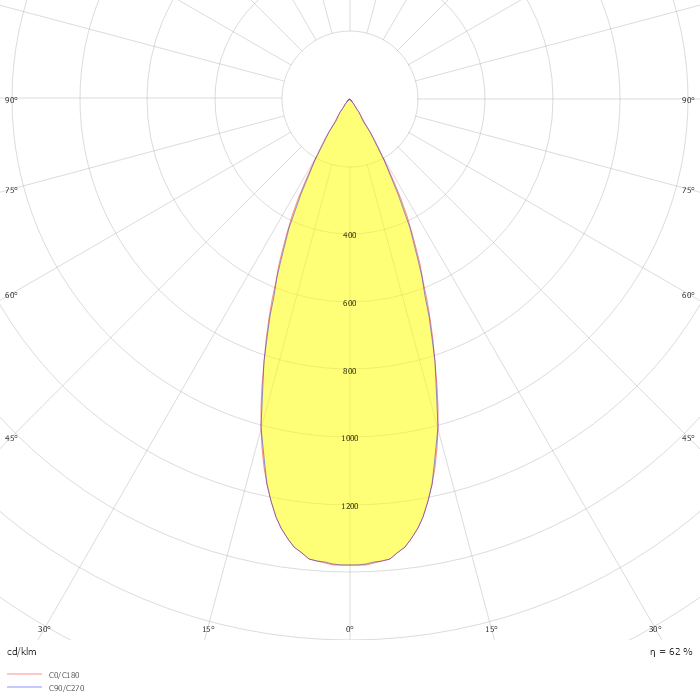

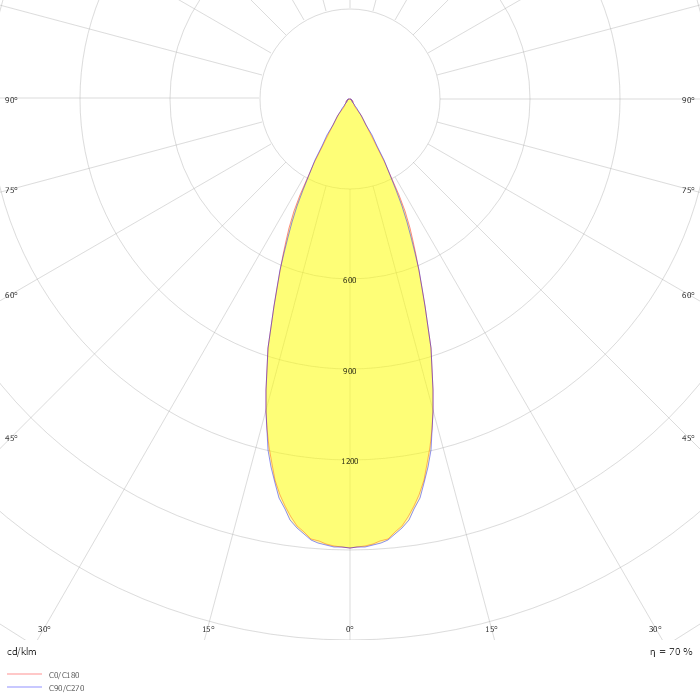

Photometric data
ZIP file
