Product data sheet

NEXILITE 150lm 1H NM

NXL150

Eaton Emergency Lighting

Product image 1: NEXILITE 150lm 1H NM
Product image 1: NEXILITE 150lm 1H NM

Product image 1: NEXILITE 150lm 1H NM



IP
65

• Latest generation LED light source • 150 and 250lm output flux • 3h duration • Compact dimensions: 290x110x40mm With his compact and modern design, NexiLite can be used in any architectural context, the wide range of accessories allows installation on a wall, ceiling, surface or recessed in indoor and outdoor environments, thanks to IP65 protection kit.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 1.5 W 150 lm 100 lm/W 4000 K 80
NEXILITE 150lm 1H NM

NEXILITE 150lm 1H NM

Light output 1 (integrated, emergency)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 11.50 in

Width: 4.37 in

Height: 1.57 in

Adjustability

Fixed

Electric

System power: 1.5 W

Information regarding emergency functions

Emergency lighting only

Emergency sign: N/A

Protection

IP: 65

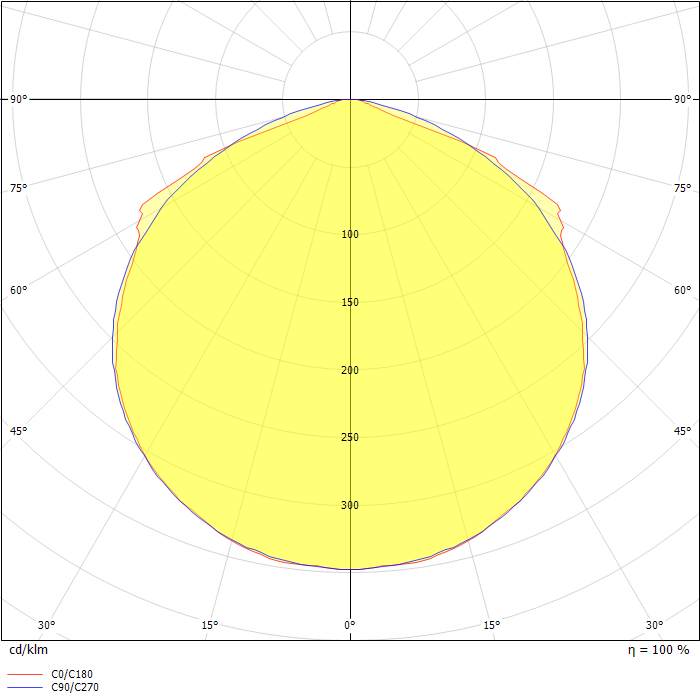

Photometric data

ZIP file

Download file
