Product data sheet

SATIN2 MWA L1230 48L35 32° 840 IO

96264879

Thorn Lighting

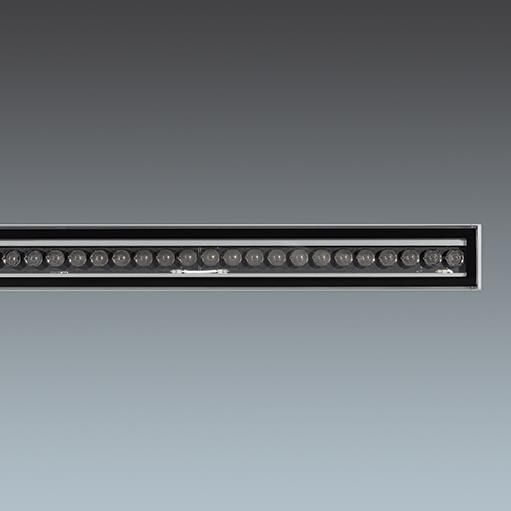

A discreet linear floodlight for façade illumination applications. 48 LEDs driven at 350mA with 32° distribution. Electronic, fixed output control gear. Body: extruded aluminium (EN AW-6060 T6) painted textured silver grey. Sides: grey polycarbonate. Enclosure: UV stabilised polycarbonate. Stirrups: powder coated steel. Class II electrical, IP67, IK08. Surface mounted or recessed with optional ground recessed box. Pre-wired with 1m of 2x1mm² H05RNF cable (and 1m of DMX512 cable for DMX versions) at both ends. Complete with 4000K LED Dimensions: 1232 x 75 x 70 mm Total power: 52 W Weight: 4.9 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 52 W 3663 lm 70 lm/W 3000 K 99
SATIN2 MWA L1230 48L35 32° 840 IO

SATIN2 MWA L1230 48L35 32° 840 IO

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 48.50 in

Width: 2.95 in

Height: 2.76 in

Weight: 4.9 kg

Design

Material impression: Aluminum

Color of housing: Silver gray

Electric

System power: 52 W

Voltage: 230 V AC

Appliance Class: II

Protection

IP: 67

IK: 08

Designation labels: CE

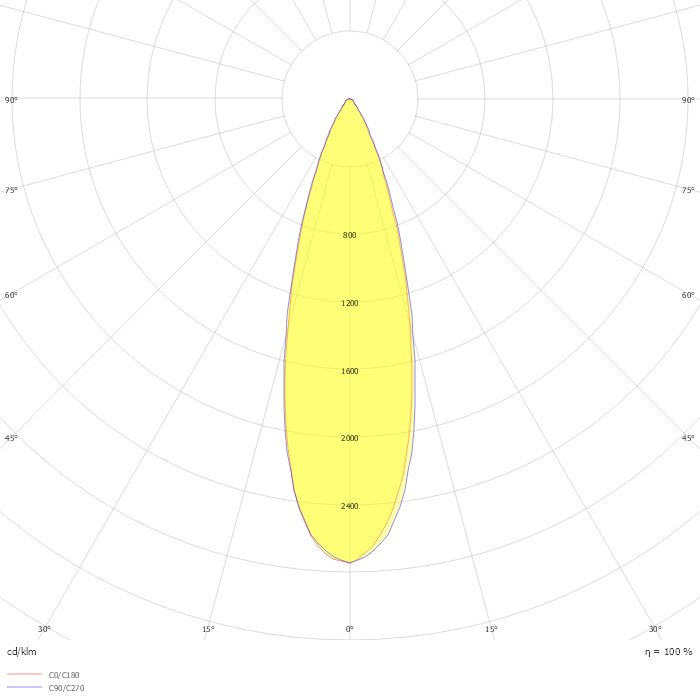

Photometric data

ZIP file
