Product data sheet

884 Compact CRI95 - DIP SWITCH 4000K CRI 95 24W CLD White

156425-00

Disano

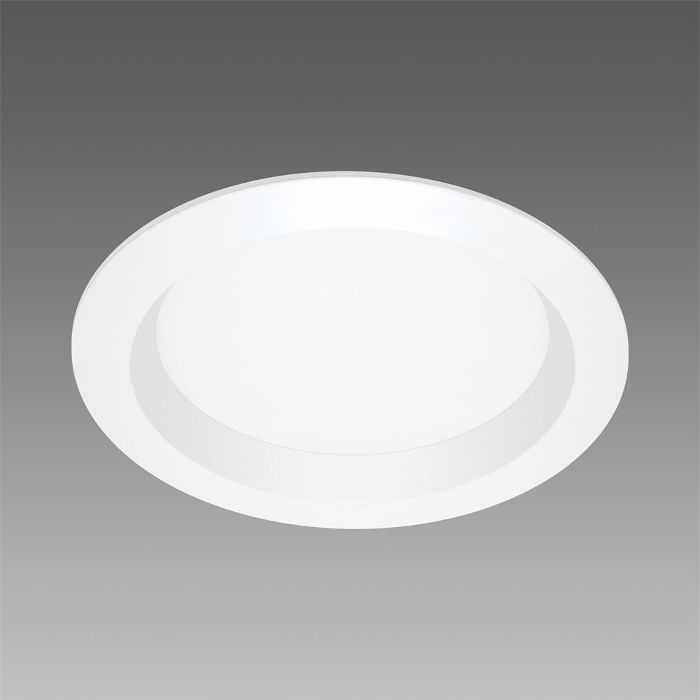

Product image 1: 884 Compact CRI95 - DIP SWITCH 4000K CRI 95 24W CLD White
Product image 1: 884 Compact CRI95 - DIP SWITCH 4000K CRI 95 24W CLD White

Product image 1: 884 Compact CRI95 - DIP SWITCH 4000K CRI 95 24W CLD White



IP
44

IK
07

Housing: in die-cast aluminium. Diffuser: thermoplastic material resistant to high temperatures. Coating: polyester powder coated, UV-stabilised, anti-yellowing, phosphate pre-treatment. Heat Sink: built-in. Low flicker: luminaire with very low flicker: evenly distributed light for greater visual safety. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Minimum Environmental Criteria (CAM) compliant product. Equipment: with adjustable steel bracket.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24 W 3134 lm 131 lm/W 4000 K 95
884 Compact CRI95 - DIP SWITCH 4000K CRI 95 24W CLD White

884 Compact CRI95 - DIP SWITCH 4000K CRI 95 24W CLD White

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 2.28 in

Diameter: 9.65 in

Adjustability

Fixed

Design

Material impression: Aluminum

Color of housing: White

Electric

System power: 24 W

Appliance Class: II

Protection

IP: 44

IK: 07

Designation labels: CE, ENEC

Photometric data

ZIP file
