Product data sheet

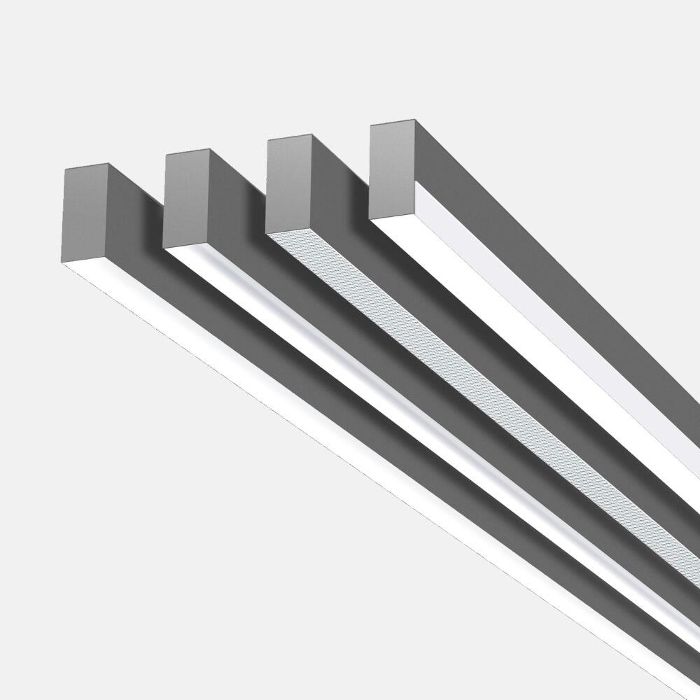

Matric 38mm Surface - A1

LA1OEE-830H-L1475

Lightnet

LED surface-mounted luminaire. Direct only light distribution. Light channel made of aluminium profile with 38mm track width. Precise length production according to specifications possible. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Opal diffuser made of acrylic glass and and ambient diffuser with omnidirectional light distribution for general lighting. Wallwasher for homogeneous vertical illuminance. Converter integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ Mac Adam 3. Colour rendering CRI>80 or CRI>90. On request: Integration of emergency lighting components, sensor technology as well as many other options.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 26 W 2852 lm 110 lm/W 3000 K 82
Matric 38mm Surface - A1

Matric 38mm Surface - A1

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 58.07 in

Width: 1.50 in

Height: 2.95 in

Adjustability

Fixed

Electric

System power: 26 W

Protection

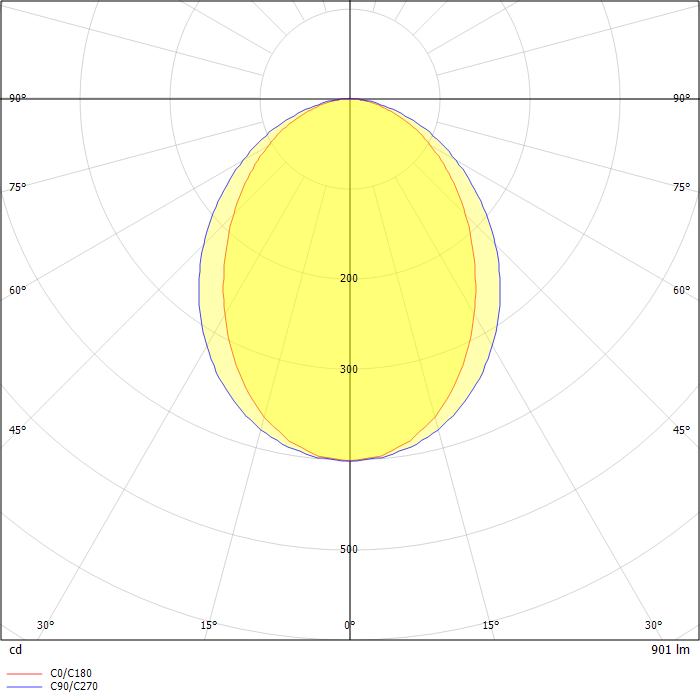

Photometric data

ZIP file
