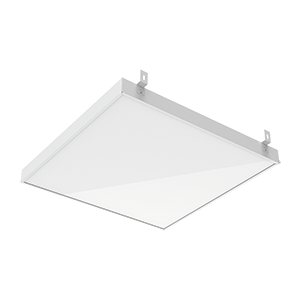

LED luminaire solution for GRILIATO ceilings. Stainless steel housing with white powder coating. Application: administrative facilities For GRILIATO suspended ceilings with special rails. Can be fixed at the level of GRILIATO cells with a height of 30, 40 or 50 mm. Length, mm: 588 Width, mm: 588 Height/depth, mm: 50 Input voltage (AC, 50Hz), V: 176...264 Ingress protection (IP): IP40 Impact resistance: IK03 Protection class: I AC frequency, Hz: 50 Flicker, %: 2 Climatic modification and category of placement: УХЛ4 Power factor: 0,95 https://www.varton.ru/products/ofisnoe-osveshchenie/varton-dlya-grilyato-gr-seriya-2-0/gr070-2-0-588x588x50-mm-ip40/svetodiodnyy-svetilnik-varton-gr070-2-0-30-vt-3000-k-588kh588kh50-mm-s-plankami-dlya-podvesa-s-opalo_1/
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 30 W | 3690 lm | 123 lm/W | 3000 K | 80 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 23.15 in
Width: 23.15 in
Height: 1.97 in
Adjustability
Fixed
Electric
System power: 30 W
Protection
IP: 40
IK: 03

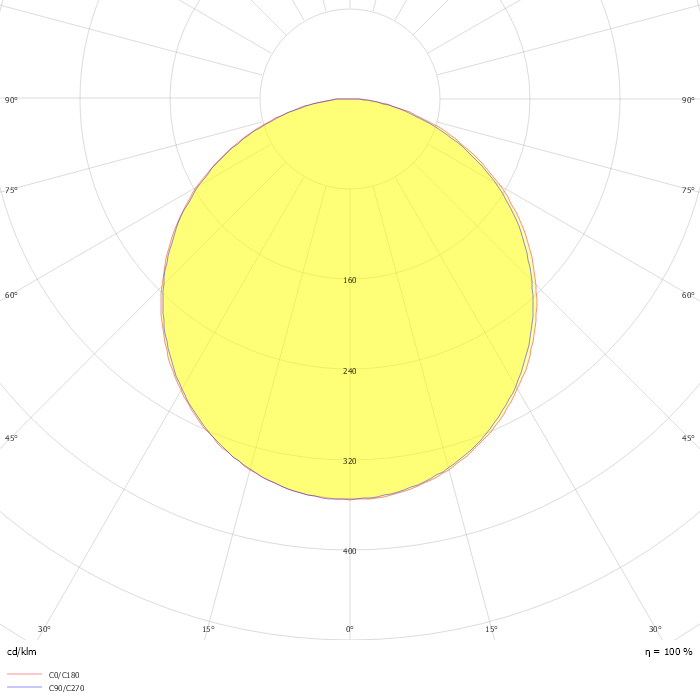

Photometric data
ZIP file
