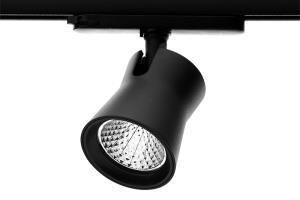

Light source LED 2000 - 3500 Lumen Out. Colour temperature 3000/4000 K, CRI Ra 90, MacAdams 3 Driver HF or DALI dimmable 100-1% with DALI dimmer. Body material & colour Housing in powder painted die-cast aluminum in matt white or black. Luminaires are delivered with a HF or DALI driver integrated in the track mount. Mounting Mounted to 3-circuit PRO or DALI track that has to be ordered separately. S90 LED is compatible with Glamox Pro Track / DALI or Global Track / Pulse. Optics Spot, medium, wide or extreme wide beam aluminum reflector.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 19 W | 2310 lm | 122 lm/W | 3000 K | 90 |
Mounting mode
Ceiling mounted, Contact rail
Shape and measurements
Height: 6.30 in
Diameter: 3.94 in
Adjustability
Rotatable, Tiltable
Electric
System power: 19 W
Protection
IP: 20

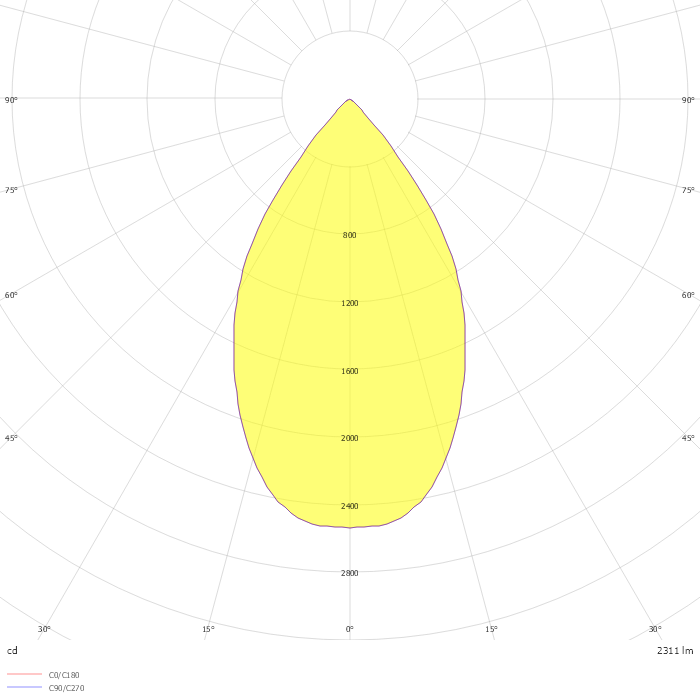

Photometric data
ZIP file
