Product data sheet

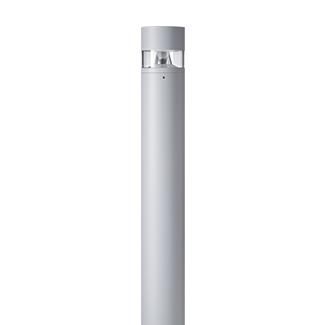

Mini CHARISMA Round

7821-0-3-904-XX

Unilamp

CHARISMA range of compact to mid-size bollard and wall light designed for residential, community and commercial sites. It is pre wired from the factory with double insulated construction therefore safe and simple to install. CHARISMA is designed to utilize a high efficient reflector and COB LED and available in three color temperatures from 2700K, 3000K and 4000K. It is supplied with built-in driver in both non-dimmable and dimmable options. The clear polycarbonate cover with internal glare suppression louvers improves lighting quality by limiting the upward light emission. The bollard height can be customized according to specific requirement. An anchorage unit is available as an accessory. Spec • Designed, Manufactured and Tested according to IEC 60598-1, IEC 60598-2-1 and VDE regulations. • LM6 Die Cast Aluminium and Extruded Aluminium body. • Stainless steel screws. • Nano Ceramic surface conversion. • Double layer coating. • Polycarbonate diffuser. • Post-cured silicone gasket. • High quality LED module and driver. • Anodized aluminium louver. • GFR PA6.6 Terminal block. • Weather proof TPE grommet. • Bollard pre-wired with outdoor cable. • Installation work has to be carried on according to the enclosed product manual.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12 W 1940 lm 162 lm/W 4000 K 80
Mini CHARISMA Round

Mini CHARISMA Round

Light output 1

1 x LED

Mounting mode

Standing / Bollard

Shape and measurements

Length: 4.12 in

Width: 4.12 in

Height: 31.51 in

Adjustability

Fixed

Electric

System power: 14 W

Appliance Class: II

Protection

IP: 65

IK: 07

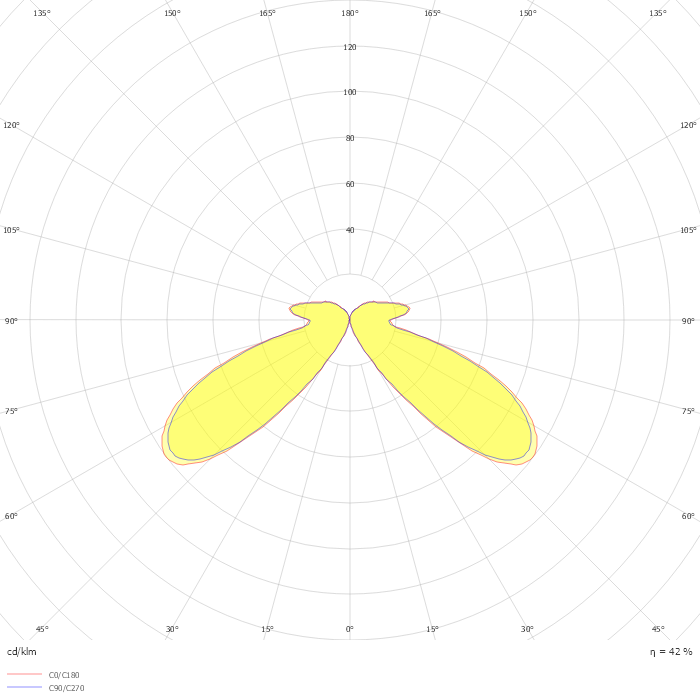

Photometric data

ZIP file
