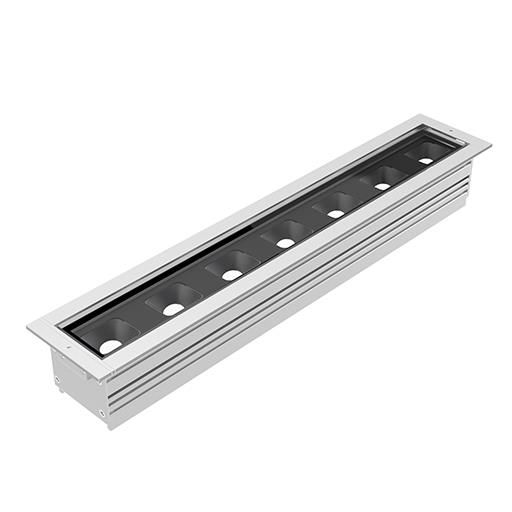

LD34 Recessed linear wall grazer. IP67. Constant Current 13.2W 350mA 31° Medium beam. The LD34 is a low glare, shallow recessed, in-ground, linear wall grazer which offers outstanding continuous wall washing capabilities for interior and exterior projects. It features a fixed 2.5° tilt, integral glare control options and individual cowls over each LED to ensure low glare from the viewer’s perspective. Multiple colour temperatures and beam angles are available, as well as accessories including an optional frosted diffusion filter to illuminate even the lowest parts of the wall. With multiple set lengths and a compact design, this high-power solution will integrate into harsh environments ensuring long lasting reliability, excellent thermal and light output performance.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 13.2 W | 1023 lm | 78 lm/W | 3000 K | 93 |
Mounting mode
Floor recessed
Shape and measurements
Length: 36.14 in
Width: 2.64 in
Height: 1.97 in
Adjustability
Fixed
Design
Material impression: Glass, Gloss, Matt, Stainless steel
Color of housing: Black, White, Anthracite / graphite, Silver gray
Electric
System power: 13.2 W
Controller: Dimmable 0..10V, Dimmable 1..10V, DMX, DALI
Appliance Class: III
Protection
IP: 67
IK: 08
Designation labels: CE
Other operating numbers
Ambient temperature range: -4...113°F

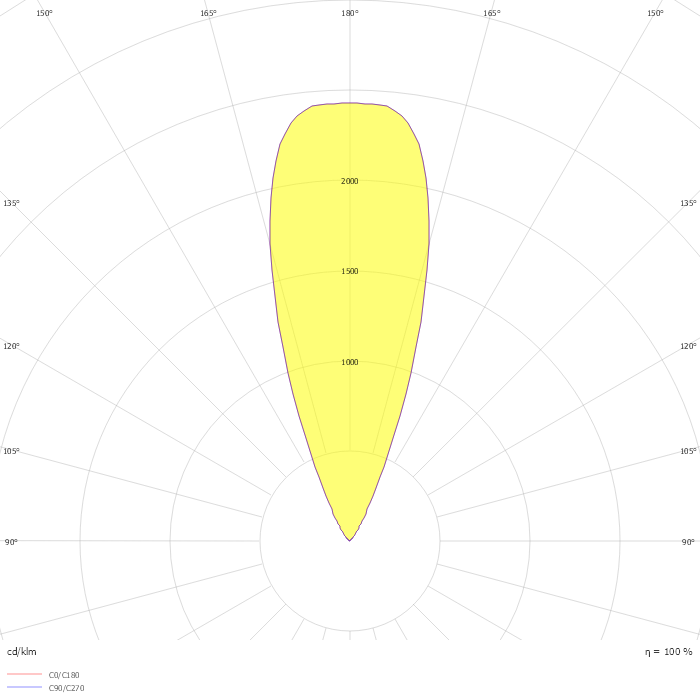

Photometric data
ZIP file
