Product data sheet

Orion White 800lm 3000K Ra>80 Trailing edge dimming

7021982121104

SG Armaturen

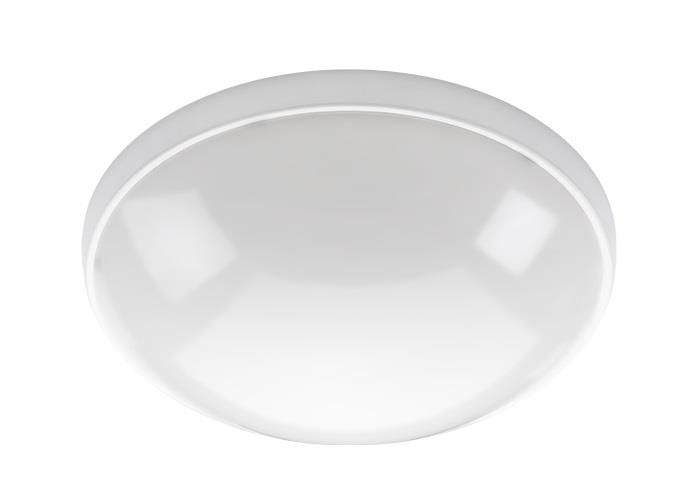

Product image 1: Orion White 800lm 3000K Ra>80 Trailing edge dimming
Product image 1: Orion White 800lm 3000K Ra>80 Trailing edge dimming

Product image 1: Orion White 800lm 3000K Ra>80 Trailing edge dimming



IP
20

IK
10

Attractive, round LED wall/ceiling luminaire for indoor mounting. Made of painted metal. Diffuser made of UV-stabilised opal polycarbonate. Efficient LED board with long service life. Hatch for easy access to connection, and option of both visible and concealed cabling as well as loopable quick clips. Vandal-resistant rating IK10. Light distribution Direct Light technic LED 10W 3000K Ra>80 SDCM 3 L70/B10 >50,000 hrs Control/Dimming Trailing edge dimming Protection Class II IP20 IK10 Materials and finish Housing: Steel Colour: White Optics: UV-stabilized polycarbonate Mounting/Connection Surface, Indoor Screwless terminal block

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 10 W 800 lm 80 lm/W 3000 K 80
Orion White 800lm 3000K Ra>80 Trailing edge dimming

Orion White 800lm 3000K Ra>80 Trailing edge dimming

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 11.85 in

Width: 11.85 in

Height: 3.43 in

Adjustability

Fixed

Electric

System power: 10 W

Appliance Class: II

Protection

IP: 20

IK: 10

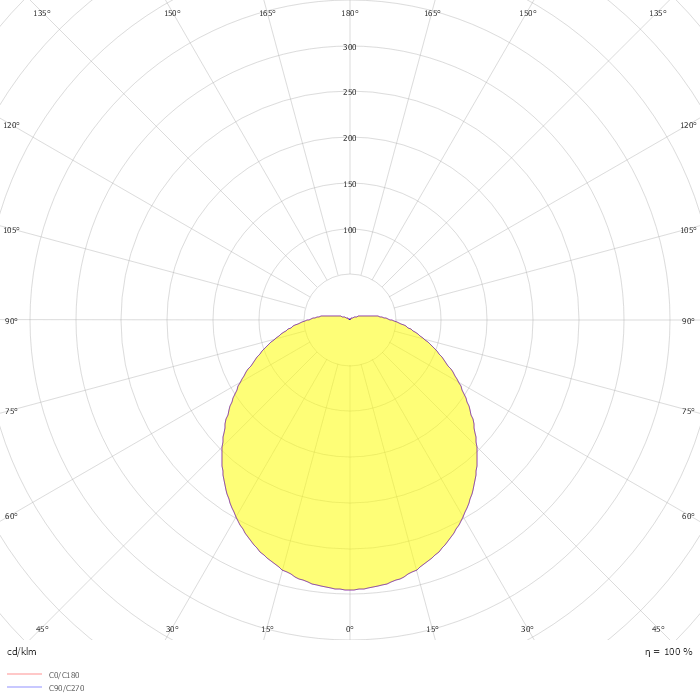

Photometric data

ZIP file

Download file
