Product data sheet

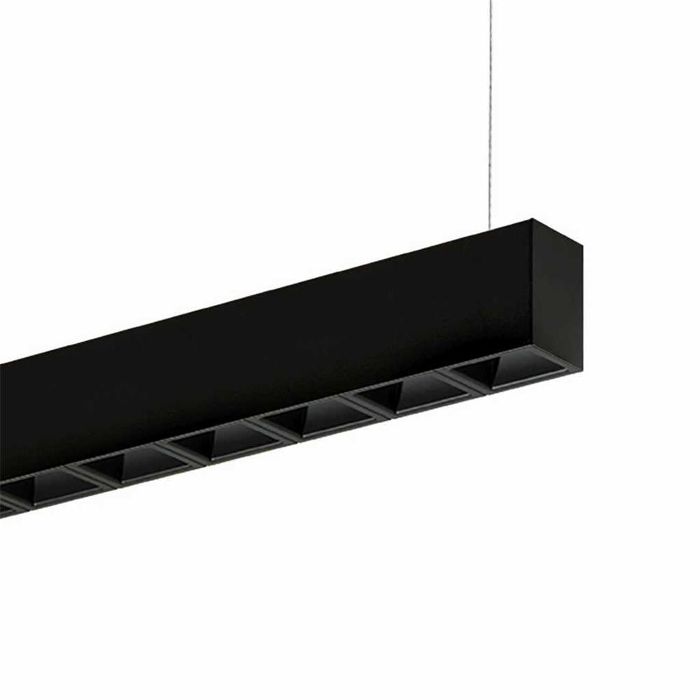

quadro suspended di/id black VDT

T65H140-9005C2930L1N

Planlicht

LED LO 3000K CRI90 27W 2198lm https://katalog.planlicht.com/en-us/fam-quadro/

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 27 W 2198 lm 81 lm/W 3000 K 90
quadro suspended di/id black VDT

quadro suspended di/id black VDT

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 55.28 in

Width: 1.97 in

Height: 2.60 in

Adjustability

Fixed

Electric

System power: 27 W

Protection

IP: 20

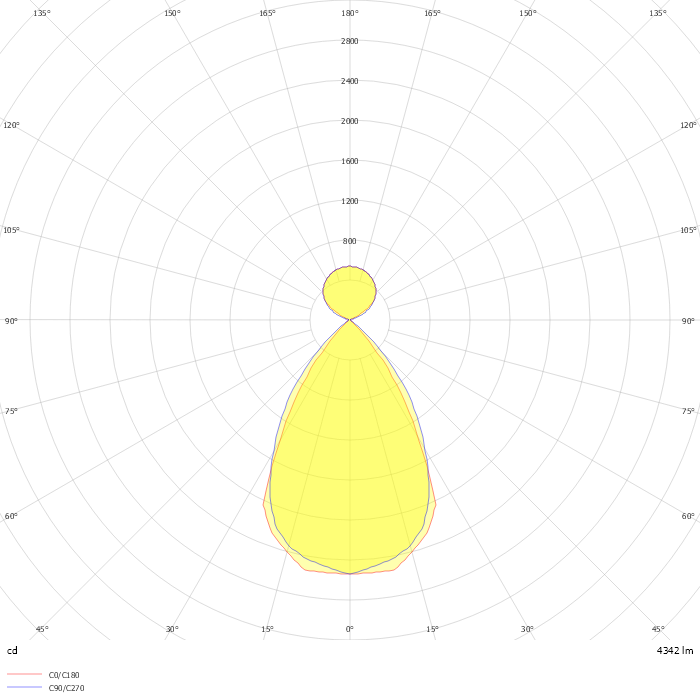

Photometric data

ZIP file
