Product data sheet

SNLED Series

4SNLED-LD5-54HL-SLW-UNV-L935-CD1-U

Cooper Lighting

Standard (SL) and High lumen/High Efficacy (HL) packages, High efficiencies - up to 153 LPW, Three different lens types for optical control, Two different reflectors for precise distribution control, Available CCT: 3000K, 3500K, 4000K and 5000K, Minimum CRI of 80; 90 CRI available, Class 2 driver with standard 0-10V dimming is NEMA 410 compliant, UL listed up to 40 C ambient temperatures, Step-dim, Fifth LightTM (DALI) and motion sensing options

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 43 W 4369 lm 102 lm/W 3500 K 90
SNLED Series

SNLED Series

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 4.00 in

Width: 24.00 in

Height: 1.50 in

Adjustability

Fixed

Electric

System power: 43 W

Appliance Class: II

Protection

IP: 47

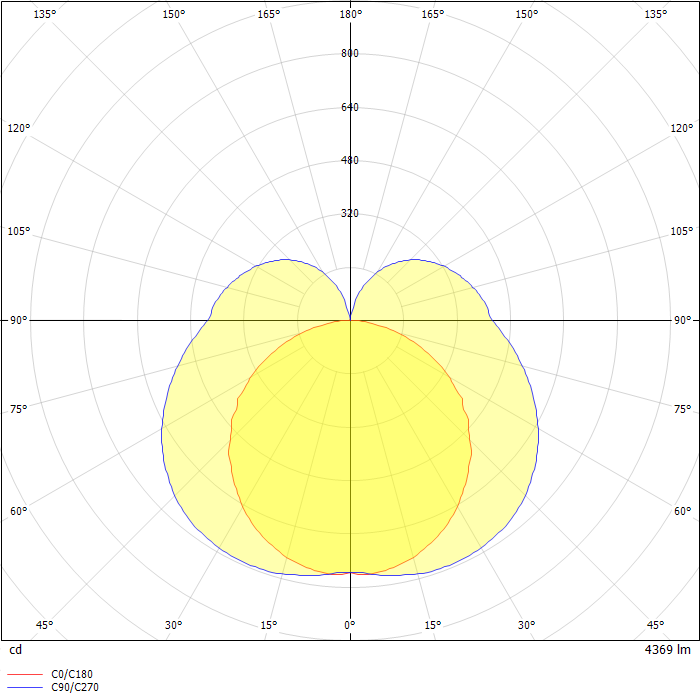

Photometric data

ZIP file
