Product data sheet

EYE BE LED1550-840 HF L ANT

96665910

Thorn Lighting

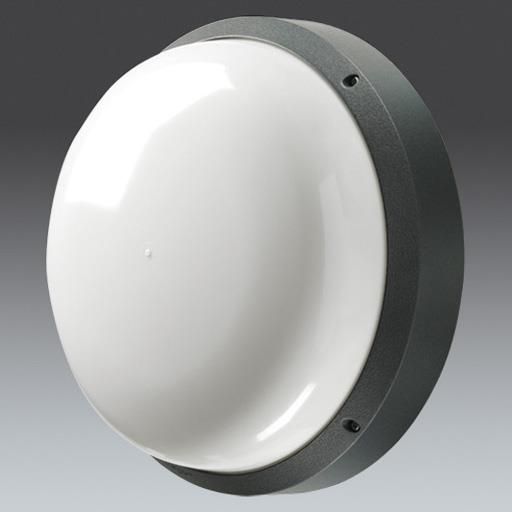

Product image 1: EYE BE LED1550-840 HF L ANT
Product image 1: EYE BE LED1550-840 HF L ANT

Product image 1: EYE BE LED1550-840 HF L ANT



IP
65

IK
10

Round, impact resistant LED bulkhead luminaire. Electronic, fixed output control gear. Class I electrical, IP65, IK10. Body: large size, die-cast aluminium (LM6), powder coated anthracite. Diffuser: opal polycarbonate with die-cast aluminium bezel feature. Electrical connection via 3 x 2 x 2.5mm² terminal block. Complete with 4000K LED Dimensions: Ø340 x 155 mm Total power: 16 W Weight: 3.3 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 16 W 1575 lm 98 lm/W 3000 K 80
EYE BE LED1550-840 HF L ANT

EYE BE LED1550-840 HF L ANT

Light output 1 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Height: 6.10 in

Diameter: 13.39 in

Weight: 3.3 kg

Design

Material impression: Aluminum

Color of housing: Anthracite / graphite

Electric

System power: 16 W

Voltage: 220-240 V AC

Appliance Class: I

Protection

IP: 65

IK: 10

Designation labels: CE

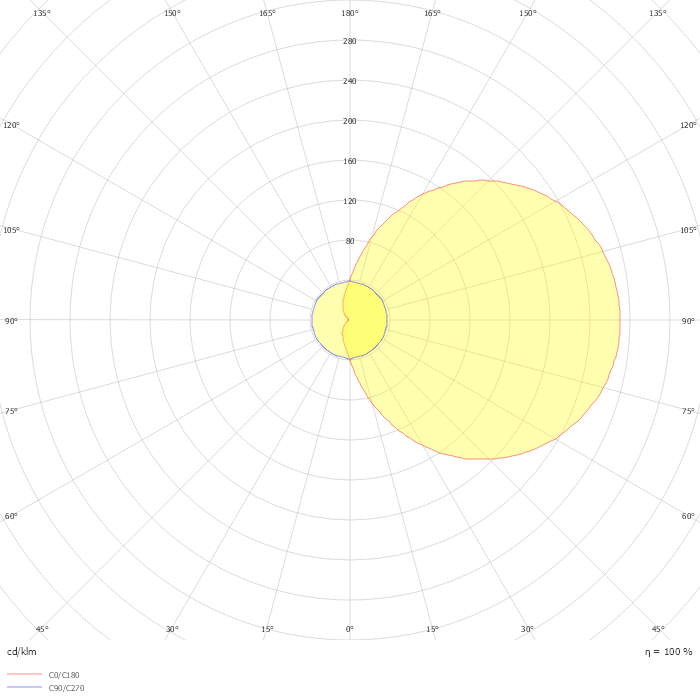

Photometric data

ZIP file

Download file
