Product data sheet
VOYAGER C LED ROUTE KIT E3TX
96548981
Thorn Lighting

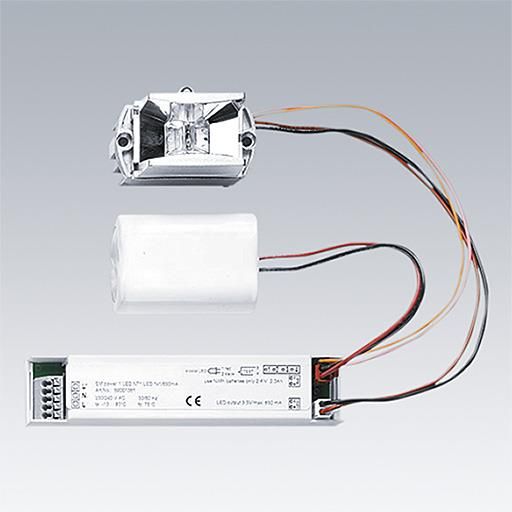

High performance, 3 hour SelfTest or Addressable Test if connected to Explorer Project/Vision, emergency lighting kit for incorporation into a suitable housing (not supplied). 1 x 3W LED with escape route optic. Electrical connection via 1 x 5 x 1.5mm² terminals. Gear and NiMH batteries connect via plugs and sockets. Suitable for mounting up to 7m. Can be operated in either maintained, switched maintained or non-maintained modes. Total power: 5.4 W Dimensions : Module : 140 x 30 x 22 mm Battery : 61 x 45 x 22 mm LED Assembly : 60 x 40 x 44 mm Weight: 0.5 kg
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 3 W | 115 lm | 18 lm/W | 3000 K | 99 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 2.44 in
Width: 1.61 in
Height: 1.77 in
Weight: 0.5 kg
Design
Material impression: Aluminum
Color of housing: White
Electric
System power: 10.82 W
Voltage: 230-240 V AC
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
Designation labels: CE

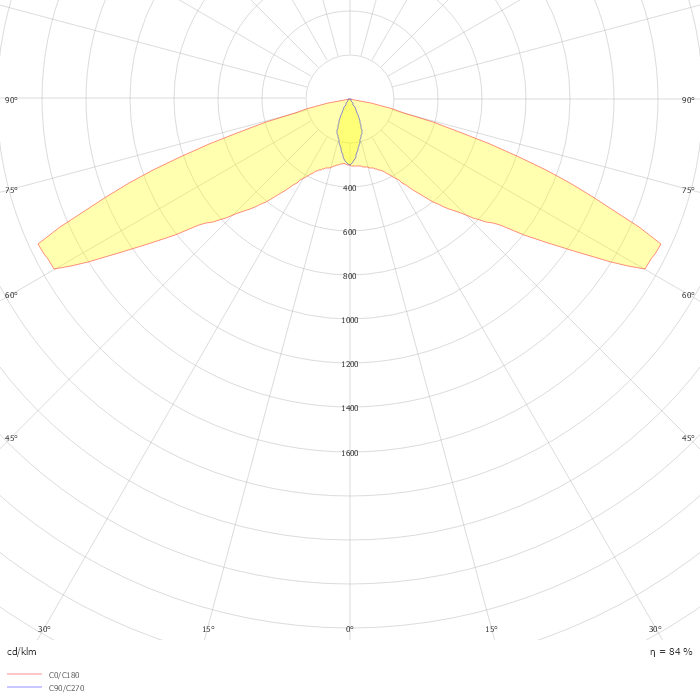

Photometric data
ZIP file
