Product data sheet

Wall Bracket With USB/LED

WB123/1182

Franklite

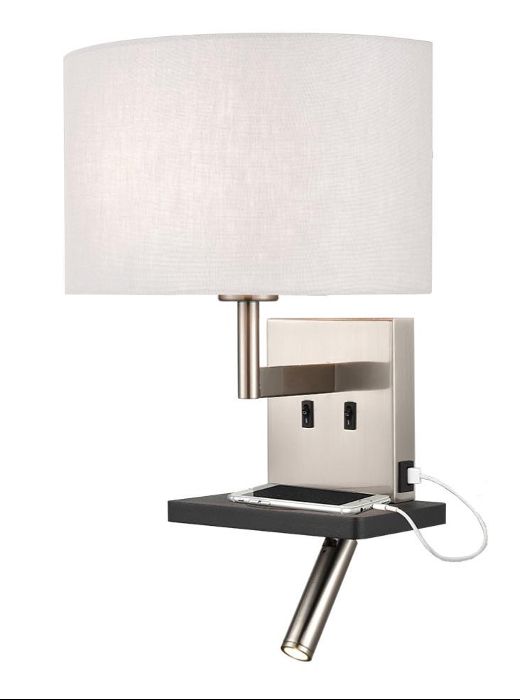

Product image 1: Wall Bracket With USB/LED
Product image 1: Wall Bracket With USB/LED

Product image 1: Wall Bracket With USB/LED



IP
20

In satin nickel and matt black finish with an LED reading light, 2 switches on the backplate, a USB port and device pad with wireless charging point. Shown with an off-white curved shade.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 8.41 W 558 lm 66 lm/W 2700 K 82
Wall Bracket With USB/LED

Wall Bracket With USB/LED

Light output 1 (integrated)

LED

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 3.46 W 167 lm 48 lm/W 3000 K 80
Wall Bracket With USB/LED

Wall Bracket With USB/LED

Light output 2 (integrated)

LED

Mounting mode

Wall mounted

Shape and measurements

Length: 7.93 in

Width: 10.35 in

Height: 14.70 in

Adjustability

Fixed

Electric

System power: 11.87 W

Protection

IP: 20

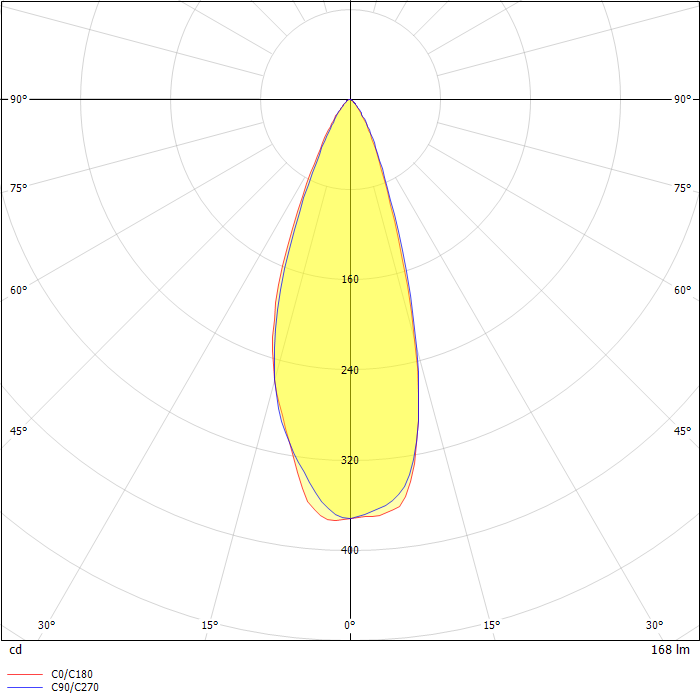

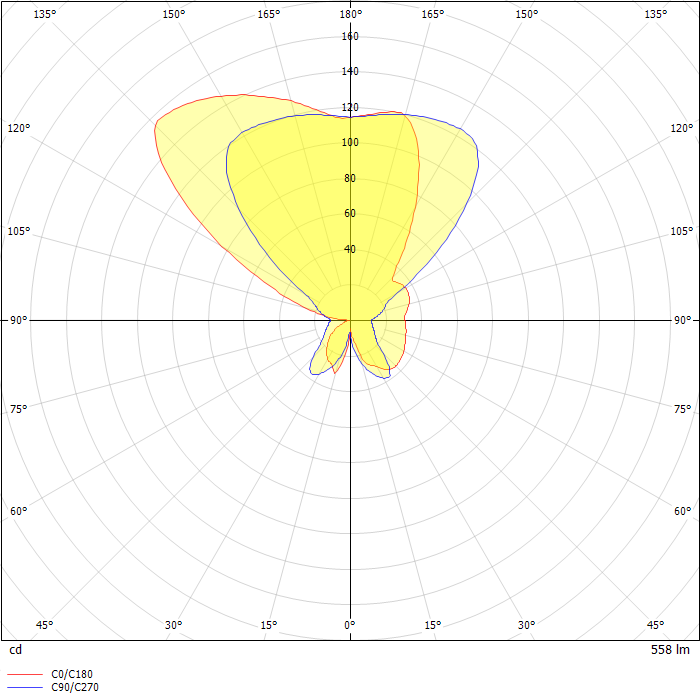

Photometric data

ZIP file

Download file
