Product data sheet

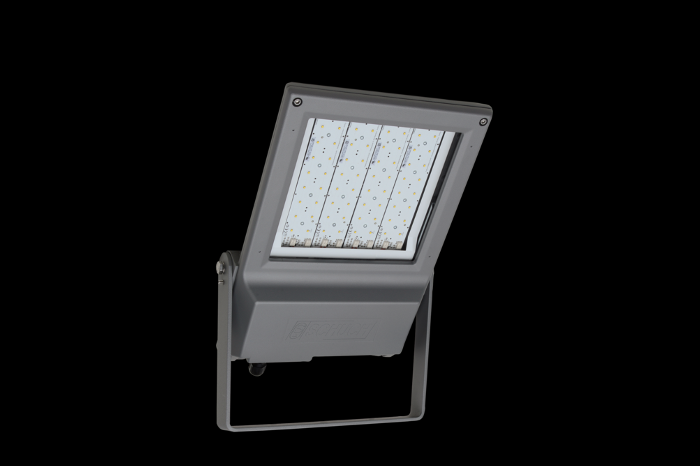

7700 FOCO L LED floodlight

7700 6403AB (77000 0085)

Schuch

LED floodlight, FOCO L, 140 W, 20000 lm, 143 lm/W, Class I, IP66, asymmetrical wide beam, 4000 K, CRI≥ 70, Ta -40 °C/+40 °C, L90>100000 h (@ Ta max), Pane Safety glass clear, Housing Die-cast aluminium, Colour grey, DB702N. LED floodlight FOCO L of the GreenLine series with outstanding sustainable product design. Consisting of powder-coated die-cast aluminium housing, two-part. Upper part with LED modules, lower part with ECG, tempered safety glass pane, cable entry and strain relief, hinged. Zhaga LED modules, direct beam, Multi-Layer Technology. ECG with high surge protection, overload and short circuit protection. Mounting bracket with swivel range of 180°. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 573,00 mm, Width/Diameter 360,00 mm, Height 100,00 mm, Net weight 9,70 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 140 W 19998 lm 143 lm/W 4000 K 70
7700 FOCO L LED floodlight

7700 FOCO L LED floodlight

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Wall mounted

Shape and measurements

Length: 22.56 in

Width: 14.17 in

Height: 3.94 in

Adjustability

Fixed

Electric

System power: 140 W

Appliance Class: I

Protection

IP: 66

IK: 10

Designation labels: CE

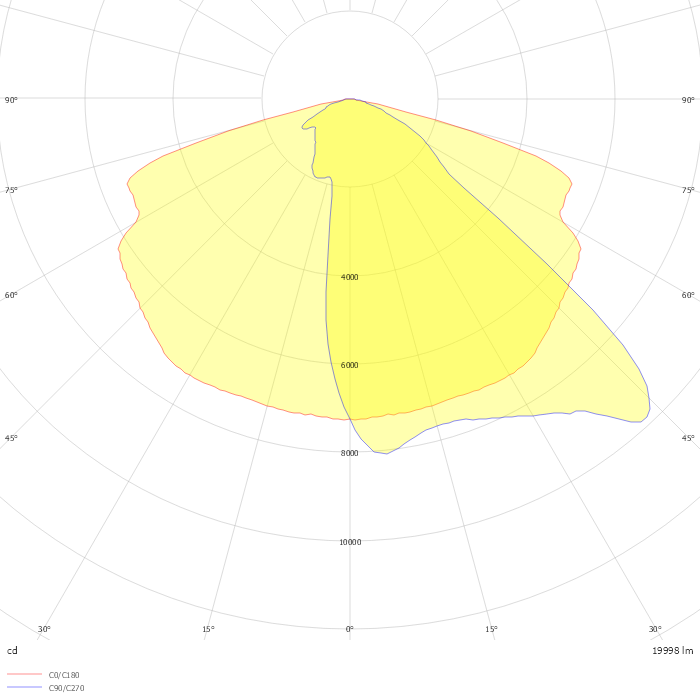

Photometric data

ZIP file
