Product data sheet

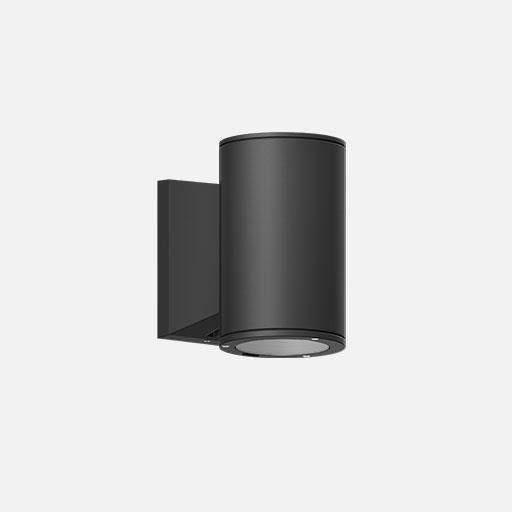

Jet 53 wall luminaires
JE-30383-E-40
LIGMAN
- Lamp LED - CRI Ra > 80 - MacAdam Ellipse 3 SDCM - Colour RGBW 30,40 - Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance - Single cable entry - Two cable entries for through wiring for JE-30393, JE-30413, JE-30383, JE-30403 - Stainless steel fasteners in grade 316 - Durable silicone rubber gasket - High-efficiency optical reflector - Clear toughened glass - Integral control gear
- Light output 1 (integrated)
- Light output 2 (integrated)
- Light output 3 (integrated)
- Light output 4 (integrated)

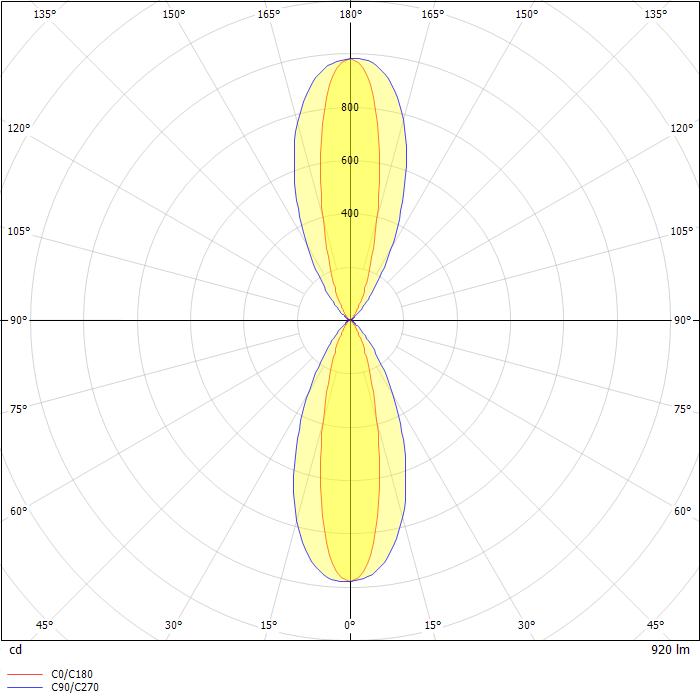

| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 18.2 W | 920 lm | 51 lm/W | 4032 K | 80 |

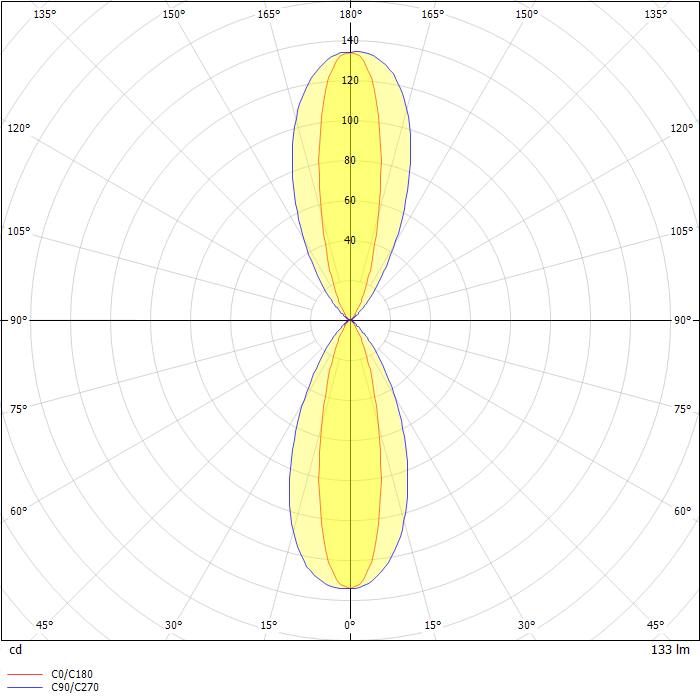

| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 18.4 W | 133 lm | 7 lm/W | 0 K | -50 |

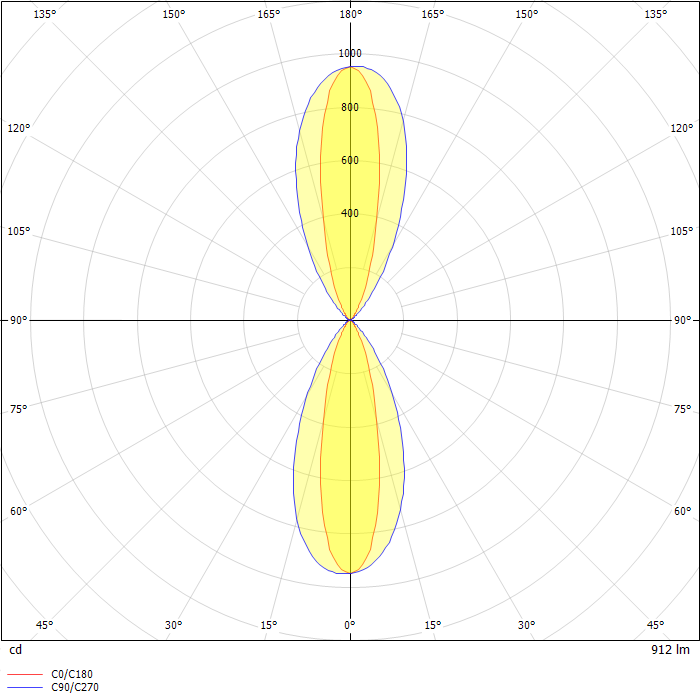

| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 18.4 W | 912 lm | 50 lm/W | 7247 K | -18 |
Mounting mode
Wall mounted
Shape and measurements
Height: 10.31 in
Diameter: 6.30 in
Weight: 5.3 kg
Adjustability
Fixed
Design
Color of housing: Black, White, Silver gray
Glare protection
Glare protection: UGR < 19
Electric
System power: 68.6 W
Voltage: 230 V AC
Ballast: ECG
Controller: Dimmable 1..10V, DALI
Appliance Class: I
Protection
IP: 65
IK: 08
Surface temperature: 40°C

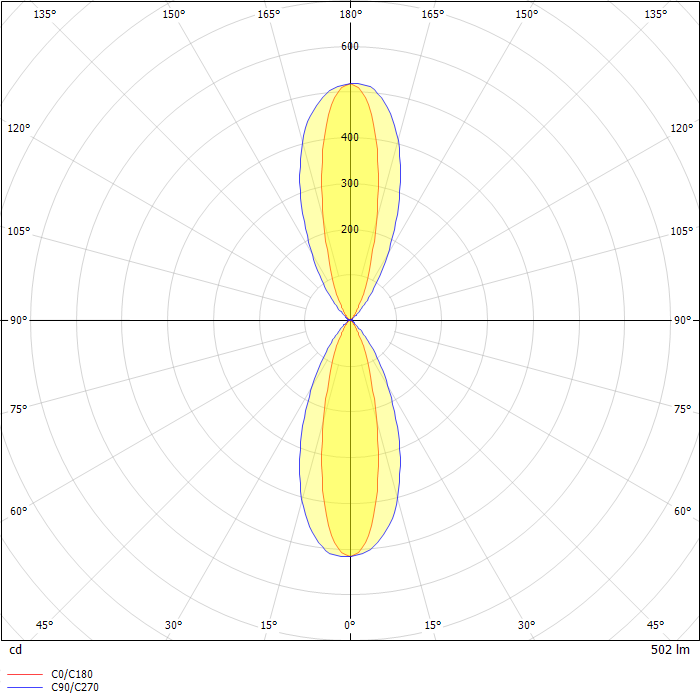

Photometric data
ZIP file
