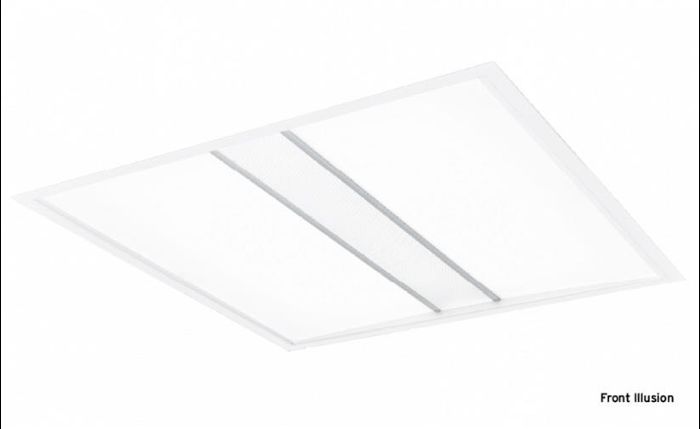

Multi Concept is a flexible, recessed luminaire that is designed to meet future requirements. The luminaire can be combined in a variety of ways using the three components (luminaire housing, insertable LED unit and front cover). Thus, Multi Concept is adaptable to a room’s function in terms of design and lighting technology and the lighting can be optimised when the function of a room is changed. Light distribution Direct Light source LED 25W 4000K Ra>90 SDCM 3 L80/B10 >60,000 hrs Control/Dimming DALI Protection Class I IP20 Materials and finish Housing: Sheet steel Colour: White (Pure white, 25% gloss) Optics: PMMA (Acrylate) Mounting/Connection Recessed, Indoor Max. luminaires per circuit breaker: B10: 15, B16: 24, C10: 25, C16: 41
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 25 W | 2510 lm | 100 lm/W | 4000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Length: 23.43 in
Width: 23.43 in
Height: 4.09 in
Adjustability
Fixed
Electric
System power: 25 W
Appliance Class: I
Protection
IP: 20

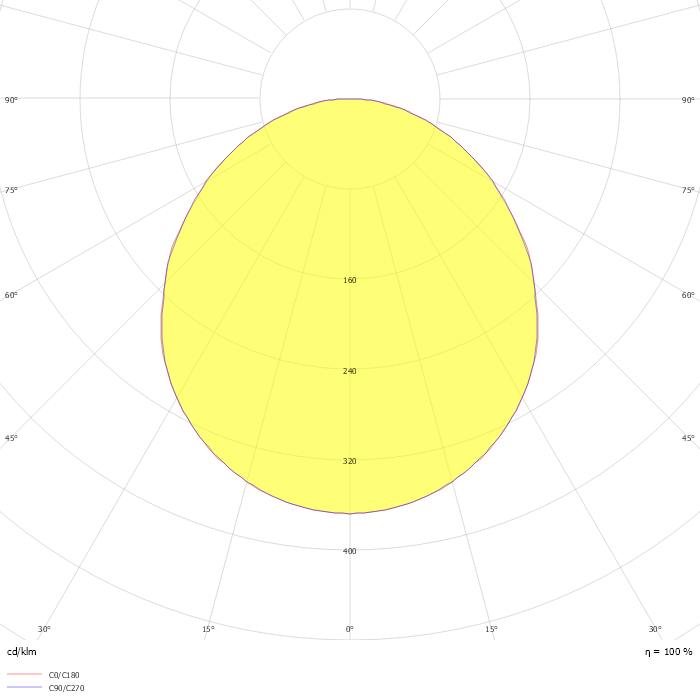

Photometric data
ZIP file
