Product data sheet

SHANTA L M03BL1 24k0 730 B124

SHANTA L M03BL1 24k0 730 B124

ELEKTRO LUMEN

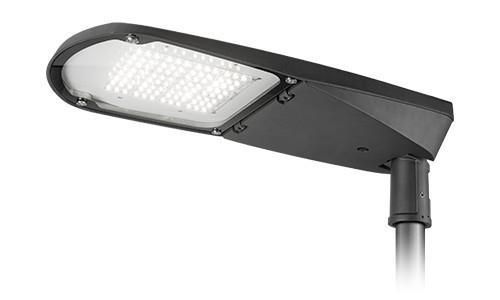

Product image 1: SHANTA L M03BL1 24k0 730 B124
Product image 1: SHANTA L M03BL1 24k0 730 B124

Product image 1: SHANTA L M03BL1 24k0 730 B124



IP
66

IK
08

Modern outdoor LED luminaire for public lighting with integrated overvoltage protection and adjustable joint ± 15°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 156 W 24000 lm 154 lm/W 3000 K 70
SHANTA L M03BL1 24k0 730 B124

SHANTA L M03BL1 24k0 730 B124

Light output 1

1 x LED

Mounting mode

Pole top mounted

Shape and measurements

Length: 31.14 in

Width: 15.00 in

Height: 3.94 in

Adjustability

Tiltable

Design

Material impression: Matt

Electric

System power: 156 W

Ballast: ECG

Appliance Class: I

Protection

IP: 66

IK: 08

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -40...122°F
