Product data sheet
EYE BE LED1550-840 MWS E3 L ANT
96665913
Thorn Lighting

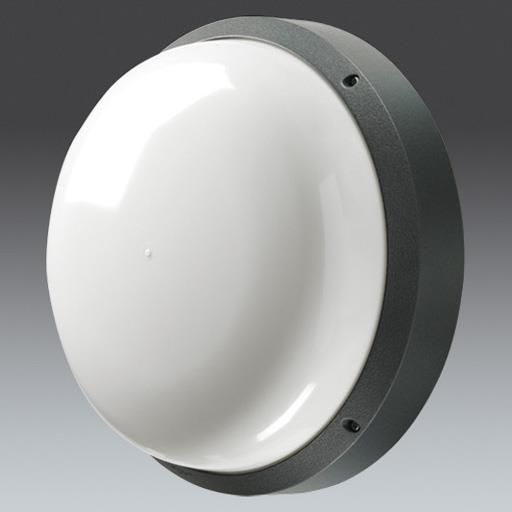

Round, impact resistant LED bulkhead luminaire. Electronic, fixed output control gear with 3 hour, manual test, emergency lighting circuit. Class I electrical, IP65, IK10. Body: large size, die-cast aluminium (LM6), powder coated anthracite. Diffuser: opal polycarbonate with die-cast aluminium bezel feature. Electrical connection via 4 x 2 x 2.5mm² terminal block. With integral motion sensor for on/off control. Complete with 4000K LED Dimensions: Ø340 x 155 mm Total power: 16 W Weight: 3.7 kg
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x General service incandescent lamp | 1 W | 120 lm | 119983 lm/W | 3000 K | 99 |
Mounting mode
Wall mounted
Shape and measurements
Height: 6.10 in
Diameter: 13.39 in
Weight: 3.7 kg
Design
Material impression: Aluminum
Color of housing: Anthracite / graphite
Electric
System power: 16 W
Voltage: 220-240 V AC
Appliance Class: I
Information regarding emergency functions
Supplementary emergency lighting
Emergency sign: N/A
Protection
IP: 65
IK: 10
Designation labels: CE

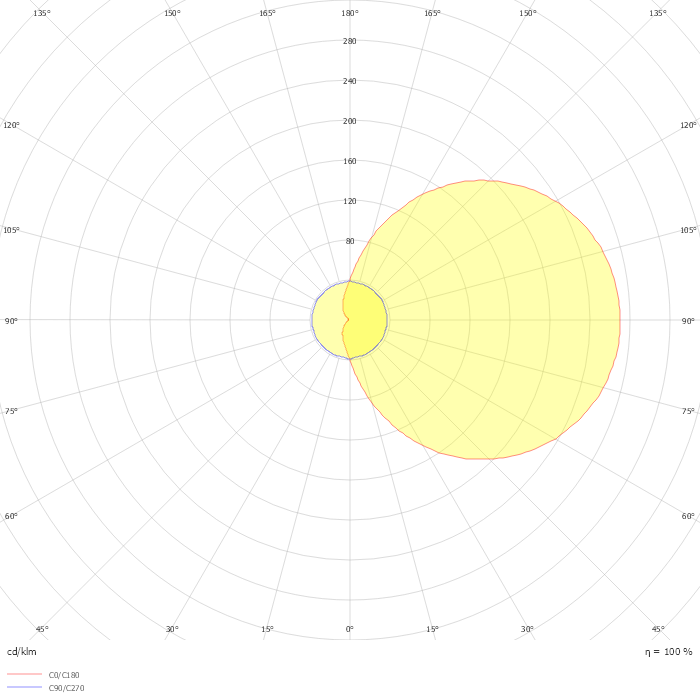

Photometric data
ZIP file
