Product data sheet

LED Dimmable round surface panel 24W 6500K

SRPL-24T/DIM

MPE

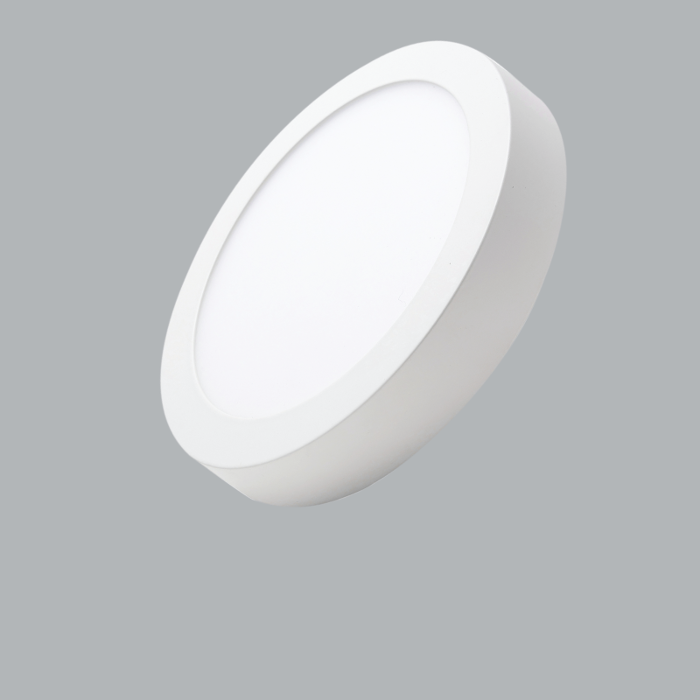

Product image 1: LED Dimmable round surface panel 24W 6500K
Product image 1: LED Dimmable round surface panel 24W 6500K

Product image 1: LED Dimmable round surface panel 24W 6500K



IP
20

- Round shape - Surface - mounted on ceiling - Light frame made of anti-oxidation aluminum alloy - Light guide plate made of PMMA plastic for uniform light distribution - Detachable driver for easy connection, Integrated driver EMC. - Use with Dimmer LED to adjust brightness - Size: Ø300 x 35 mm - Voltage: 100-240VAC - Power: 24W - Power Factor (PF): >0.5 - Luminance: 1800 lm - Color Temperature (CCT): 6000-6500K - RA >80 High Color Rendering Index - Beam angle: 120⁰ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE - RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 24 W 1800 lm 76 lm/W 6500 K 82
LED Dimmable round surface panel 24W 6500K

LED Dimmable round surface panel 24W 6500K

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 11.81 in

Width: 11.81 in

Height: 1.26 in

Adjustability

Fixed

Electric

System power: 24 W

Protection

IP: 20

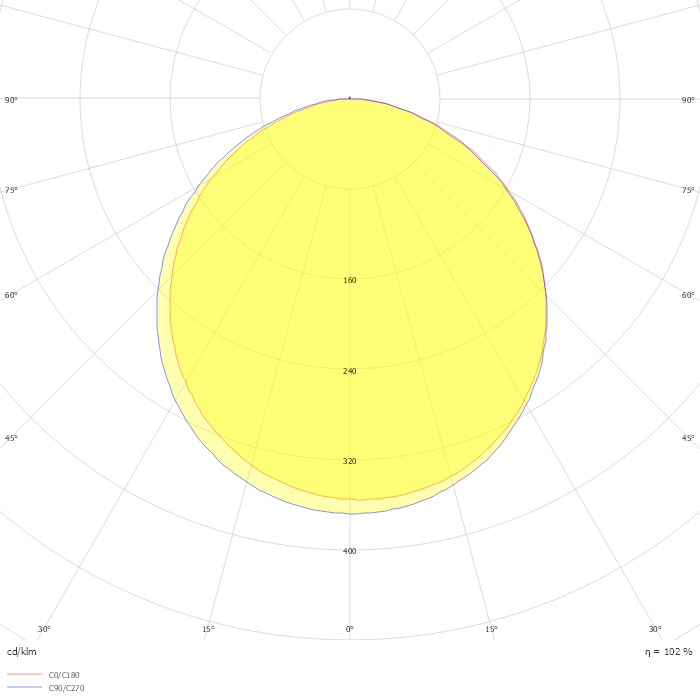

Photometric data

ZIP file

Download file
