Product data sheet

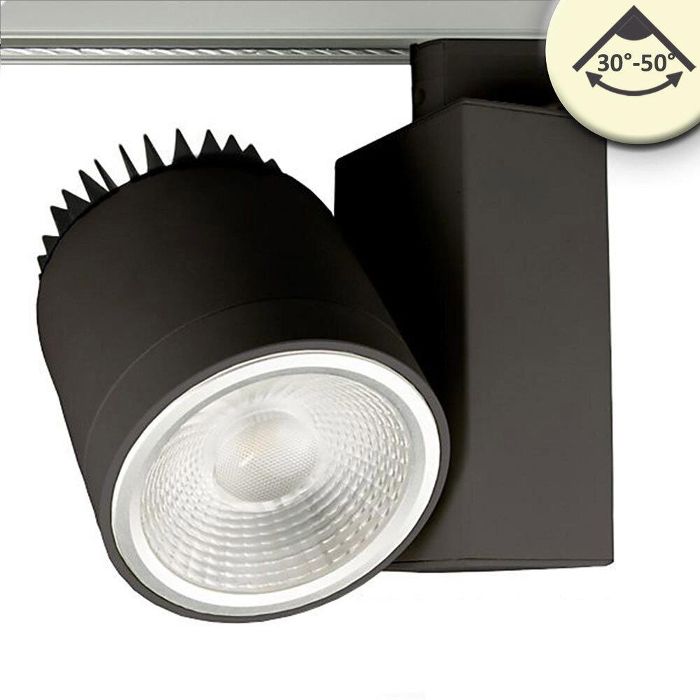

3-PH Track light focusable, 35W, 30°-50°, black matt, 3000K, CRI92
114132
ISOLED
3-PH Track light focusable, 35W, 30°-50°, black matt, 3000K, CRI92 | Dimensioned wattage: 35 W | Effective wattage: 38.9 W | Energy efficiency class: E (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: cast aluminum | Surface color: black matt | Protection class: IP20 | suitable for indoor use only | permissible ambient Temperatures: -20° - 40° C | Diameter: 98 mm | beam angle: 30° - 50° min-max | variably adjustable | color temperature: 3000K | Color rendering index: 92 (Ra 1-8) | Luminous flux: 4100 lm | Useful life: 68000 h (L80|B50) | Guarantee: 5 years | Special features: incl. 3-PH EURO adapter, passively cooled, incl. variable adjustment of the beam angle from 30° to 50°, dimensions of luminaire head: 106x135mm, | FABRICATION: ISOLED 114132
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 38.9 W | 4100 lm | 105 lm/W | 3000 K | 92 |
Mounting mode
Ceiling mounted, Contact rail, Contact rail
Shape and measurements
Length: 5.91 in
Width: 3.94 in
Height: 7.48 in
Adjustability
Rotatable, Tiltable
Design
Material impression: Aluminum
Color of housing: Black
Electric
System power: 38.9 W
Ballast: ECG
Protection
IP: 20
Designation labels: CE
Other operating numbers
Ambient temperature range: -4...104°F
Photometric data
ZIP file
