Product data sheet

AVENIDA HERITAGE C LED LENS ED 35W 5050lm 4000K IP66 O39 - for bike paths gray II

130332.5L112.223

LUG

Product image 1: AVENIDA HERITAGE C LED LENS ED 35W 5050lm 4000K IP66 O39 - for bike paths gray II
Product image 1: AVENIDA HERITAGE C LED LENS ED 35W 5050lm 4000K IP66 O39 - for bike paths gray II

Product image 1: AVENIDA HERITAGE C LED LENS ED 35W 5050lm 4000K IP66 O39 - for bike paths gray II



IP
66

IK
10

Stylized park luminaire, based on the architecture of AVENIDA LED luminaires and referring in character to classic decorative luminaires. Mounting: on pillar ø60/76mm, with mounting bracket (included), suspended on a mounting tube with diameter ø42, catenary, on a ø6-15mm diameter cable Body: high pressure die-cast aluminum Lateral Surface Wind Exposed: 0,111 m² Power supply efficiency >89% Power: 220-240V 50/60Hz Available on request: DALI, 10kV surge protection, NTC Other remarks: the pole is not part of the luminaire Warranty: 5 years Application: avenues, sidewalks, parks, residential, public spaces, Railway stations, facades, promenade, roads, residential area roads Type of optics: O39 - for bike paths

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 35 W 5050 lm 144 lm/W 4000 K 70
AVENIDA HERITAGE C LED LENS ED 35W 5050lm 4000K IP66 O39 - for bike paths gray II

AVENIDA HERITAGE C LED LENS ED 35W 5050lm 4000K IP66 O39 - for bike paths gray II

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 22.09 in

Width: 22.09 in

Height: 21.10 in

Adjustability

Fixed

Design

Color of housing: Silver gray

Electric

System power: 35 W

Appliance Class: II

Protection

IP: 66

IK: 10

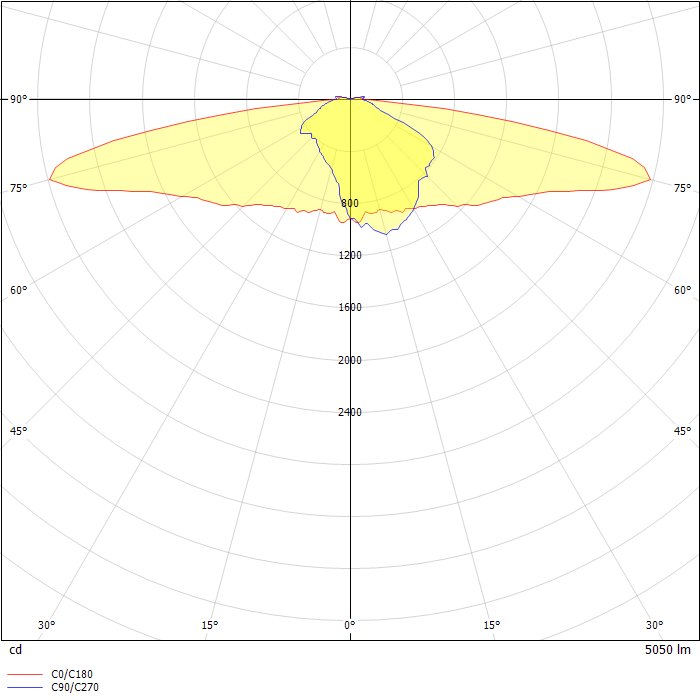

Photometric data

ZIP file
