Product data sheet
SATIN2 MWA L1230 48L35 32° GN IN
96264972
Thorn Lighting

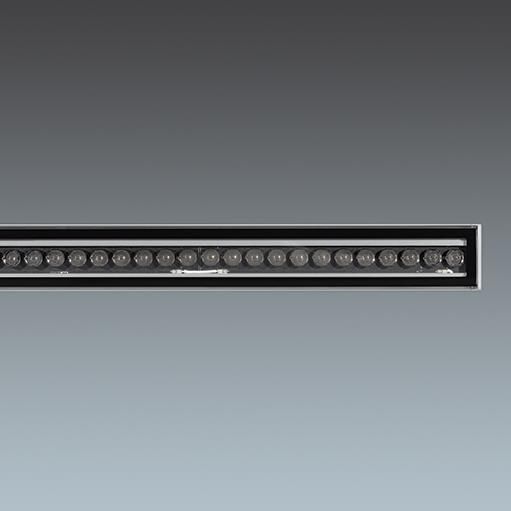

A discreet linear floodlight for façade illumination applications. 48 LEDs driven at 350mA with 32° distribution. Electronic, fixed output control gear. Body: extruded aluminium (EN AW-6060 T6) painted textured silver grey. Sides: grey polycarbonate. Enclosure: UV stabilised polycarbonate. Stirrups: powder coated steel. Class II electrical, IP67, IK08. Surface mounted or recessed with optional ground recessed box. Pre-wired with 1m of 2x1mm² H05RNF cable (and 1m of DMX512 cable for DMX versions) at one end. Complete with green LED Dimensions: 1232 x 75 x 70 mm Total power: 57 W Weight: 4.8 kg
Mounting mode
Wall mounted
Shape and measurements
Length: 48.50 in
Width: 2.95 in
Height: 2.76 in
Weight: 4.8 kg
Design
Material impression: Aluminum
Color of housing: Silver gray
Electric
System power: 57 W
Voltage: 230 V AC
Appliance Class: II
Protection
IP: 67
IK: 08
Designation labels: CE
Photometric data
ZIP file
